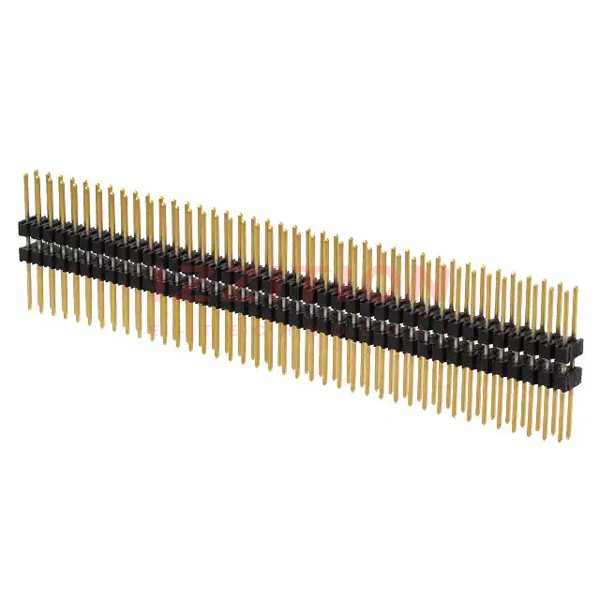

TE Connectivity AMP Connectors-4-146495-0 - Rectangular Connectors - Board Spacers, Stackers (Board to Board) Product Specifications and Latest Quotes | Izzition

Similar Products

Part Number	4-146495-0	4-146498-0	4-146497-0	4-146455-0	4-146475-0	4-146490-0	4-146492-0	4-146494-0
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Number of Positions	80	80	80	40	40	80	80	80
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	1	1	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	-	-	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Length - Overall Pin	0.930" (23.622mm)	1.030" (26.162mm)	1.030" (26.162mm)	0.440" (11.176mm)	1.230" (31.242mm)	0.739" (18.771mm)	0.817" (20.752mm)	0.930" (23.622mm)
Length - Post (Mating)	0.330" (8.382mm)	0.330" (8.382mm)	0.330" (8.382mm)	0.130" (3.300mm)	0.330" (8.382mm)	0.330" (8.382mm)	0.330" (8.382mm)	0.330" (8.382mm)
Length - Stack Height	0.270" (6.858mm)	0.370" (9.400mm)	0.600" (15.240mm)	0.200" (5.080mm)	0.800" (20.320mm)	0.300" (7.620mm)	0.400" (10.160mm)	0.500" (12.700mm)
Length - Tail	0.330" (8.382mm)	0.330" (8.382mm)	0.100" (2.540mm)	0.110" (2.800mm)	0.100" (2.540mm)	0.109" (2.769mm)	0.087" (2.210mm)	0.100" (2.540mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Contact Finish - Post (Mating)	Gold	Gold	Gold	Tin-Lead	Gold	Gold	Gold	Gold
Contact Finish Thickness - Post (Mating)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	100.0µin (2.54µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)
Color	Black	Black	Black	Black	Black	Black	Black	Black
