Please send RFQ , we will respond immediately.

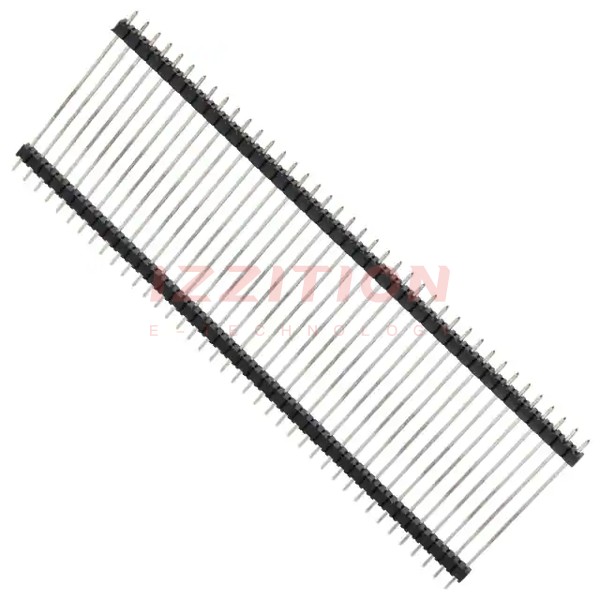

| Part Number | 4-146480-0 | 4-146486-0 | 4-146483-0 | 4-146490-0 | 4-146460-0 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Number of Positions | 40 | 80 | 80 | 80 | 40 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 1 | 2 | 2 | 2 | 1 |
| Row Spacing | - | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | - |
| Length - Overall Pin | 1.430" (36.322mm) | 0.533" (13.538mm) | 0.440" (11.176mm) | 0.739" (18.771mm) | 0.617" (15.672mm) |
| Length - Post (Mating) | 0.120" (3.050mm) | 0.123" (3.124mm) | 0.130" (3.300mm) | 0.330" (8.382mm) | 0.057" (1.448mm) |
| Length - Stack Height | 1.200" (30.480mm) | 0.300" (7.620mm) | 0.200" (5.080mm) | 0.300" (7.620mm) | 0.450" (11.430mm) |
| Length - Tail | 0.110" (2.800mm) | 0.110" (2.800mm) | 0.110" (2.800mm) | 0.109" (2.769mm) | 0.110" (2.800mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Contact Finish - Post (Mating) | Tin-Lead | Tin-Lead | Tin-Lead | Gold | Tin-Lead |
| Contact Finish Thickness - Post (Mating) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 15.0µin (0.38µm) | 100.0µin (2.54µm) |
| Color | Black | Black | Black | Black | Black |
