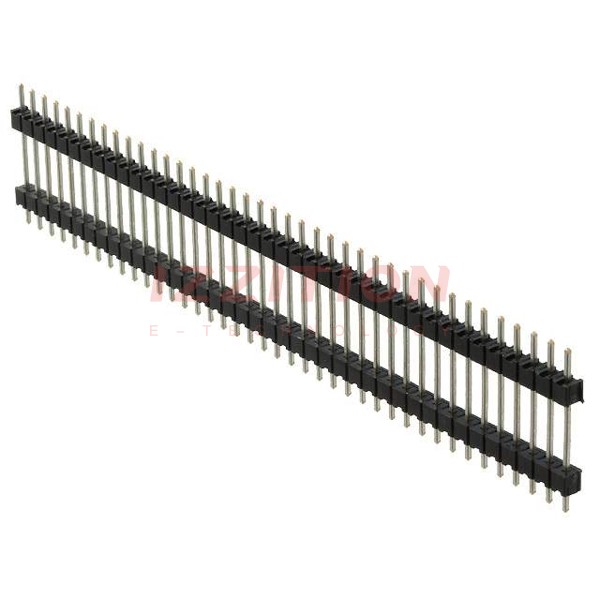

| Part Number | 4-146461-0 | 4-146468-0 | 4-146466-0 | 4-146460-0 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Number of Positions | 40 | 40 | 40 | 40 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - |
| Length - Overall Pin | 0.739" (18.771mm) | 1.030" (26.162mm) | 0.930" (23.622mm) | 0.617" (15.672mm) |
| Length - Post (Mating) | 0.129" (3.277mm) | 0.120" (3.050mm) | 0.100" (2.540mm) | 0.057" (1.448mm) |
| Length - Stack Height | 0.500" (12.700mm) | 0.800" (20.320mm) | 0.500" (12.700mm) | 0.450" (11.430mm) |
| Length - Tail | 0.110" (2.800mm) | 0.110" (2.800mm) | 0.330" (8.382mm) | 0.110" (2.800mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder |
| Contact Finish - Post (Mating) | Tin-Lead | Tin-Lead | Gold | Tin-Lead |
| Contact Finish Thickness - Post (Mating) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 15.0µin (0.38µm) | 100.0µin (2.54µm) |
| Color | Black | Black | Black | Black |
