4-146090-0
  • Share:

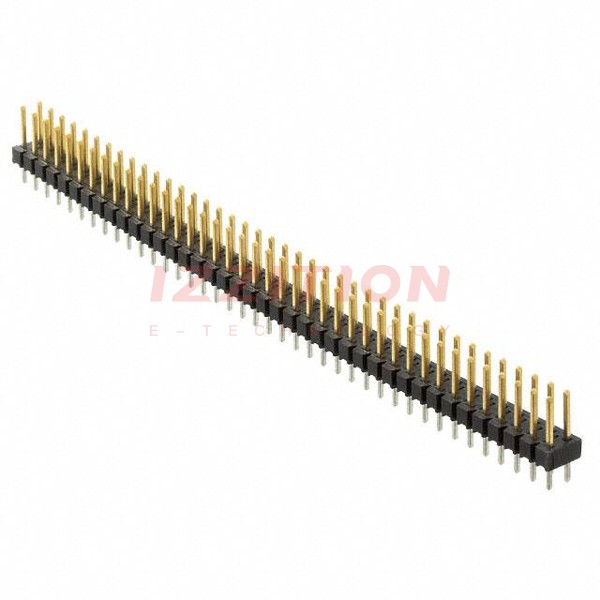

TE Connectivity AMP Connectors 4-146090-0

Manufacturer No:
4-146090-0
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
4-146090-0 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 80POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:80
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:0.440" (11.18mm)
Insulation Height:0.090" (2.29mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:5.00µin (0.127µm)
Contact Finish - Post:Tin-Lead
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:30VAC
0 Remaining View Similar

In Stock

$2.18
64

Please send RFQ , we will respond immediately.
