Please send RFQ , we will respond immediately.

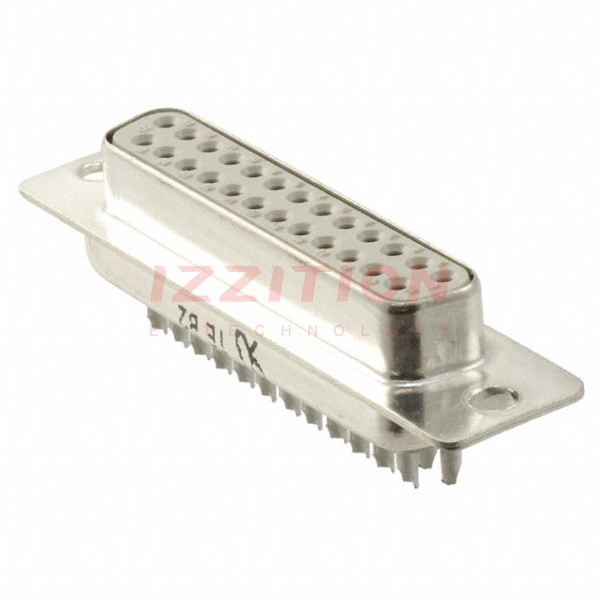

| Part Number | 4-1393483-0 | 4-1393483-7 | 4-1393483-8 | 4-1393483-9 | 4-1393483-1 | 5-1393483-0 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete |
| Connector Style | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins |
| Number of Positions | 25 | 9 | 15 | 25 | 37 | 37 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 3 (DB, B) | 1 (DE, E) | 2 (DA, A) | 3 (DB, B) | 4 (DC, C) | 4 (DC, C) |
| Contact Type | Signal | Signal | Signal | Signal | Signal | Signal |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Primary Material | - | - | - | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | - | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 3A | 3A | 3A | 3A | 3A | 3A |
| Backset Spacing | - | - | - | - | - | - |
| Features | - | Grounding Indents | Grounding Indents | Grounding Indents | - | Grounding Indents |
