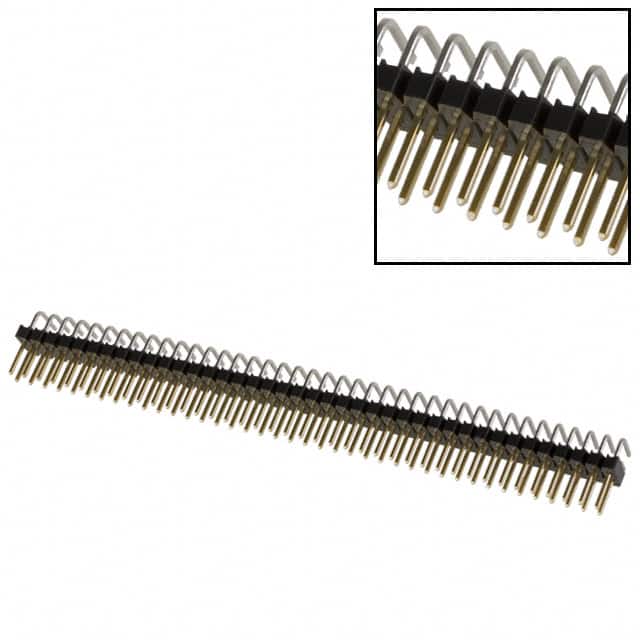

| Part Number | 4-103149-0 | 4-103148-0 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Last Time Buy | Last Time Buy |
| Connector Type | Header, Breakaway | Header, Breakaway |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions | 80 | 40 |
| Number of Rows | 2 | 1 |
| Row Spacing - Mating | 0.100" (2.54mm) | - |
| Number of Positions Loaded | All | All |
| Style | Board to Board or Cable | Board to Board or Cable |
| Shrouding | Unshrouded | Unshrouded |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Length - Mating | 0.230" (5.84mm) | 0.230" (5.84mm) |
| Contact Length - Post | 0.120" (3.05mm) | 0.120" (3.05mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.238" (6.05mm) | 0.138" (3.50mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Material | Copper Alloy | Copper Alloy |
| Insulation Material | Thermoplastic | Thermoplastic |
| Features | - | - |
| Operating Temperature | -65°C ~ 105°C | -65°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | 3A | 3A |
| Voltage Rating | - | - |
