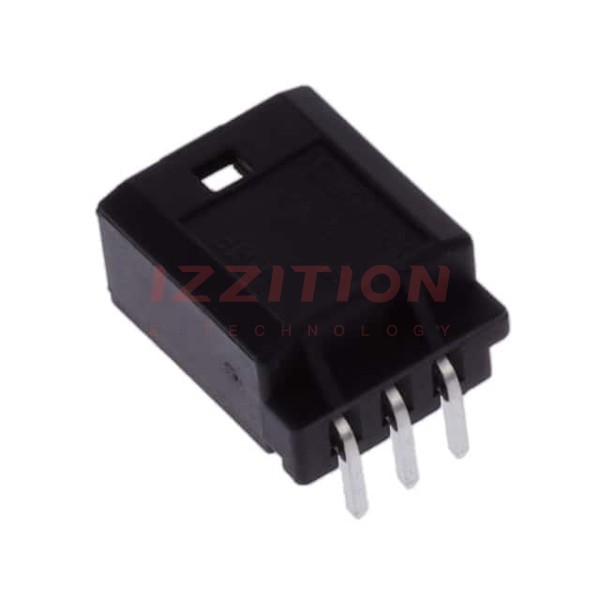

TE Connectivity AMP Connectors 368312-1

Manufacturer No:
368312-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
368312-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 3POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.264" (6.70mm)
Contact Length - Post:0.122" (3.10mm)
Overall Contact Length:-
Insulation Height:0.244" (6.20mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Bronze
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Board Guide
Operating Temperature:-40°C ~ 120°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$0.61
1,320

Please send RFQ , we will respond immediately.
