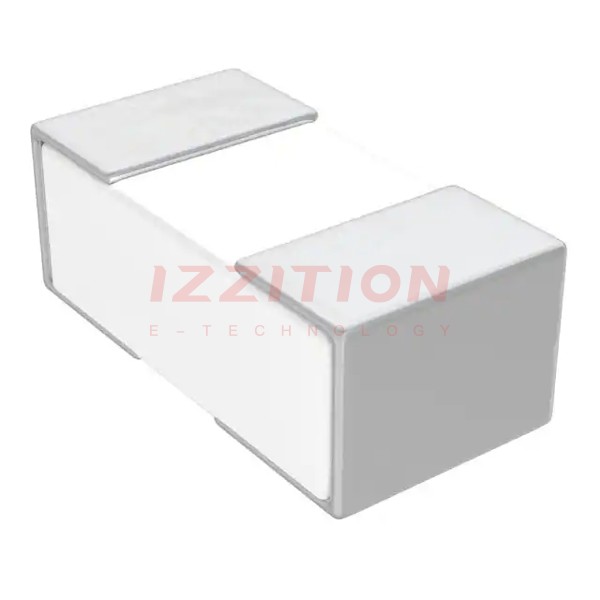

| Part Number | 36401E33NGTD | 36401E33NJTD |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity Passive Product |
| Product Status | Active | Active |
| Type | Thin Film | Thin Film |
| Material - Core | - | - |
| Inductance | 33 nH | 33 nH |
| Tolerance | ±2% | ±5% |
| Current Rating (Amps) | 75 mA | 75 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 4.5Ohm Max | 4.5Ohm Max |
| Q @ Freq | 13 @ 500MHz | 13 @ 500MHz |
| Frequency - Self Resonant | 2.5GHz | 2.5GHz |
| Ratings | - | - |
| Operating Temperature | - | -40°C ~ 85°C |
| Inductance Frequency - Test | 500 MHz | 500 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.015" (0.37mm) | 0.015" (0.37mm) |
