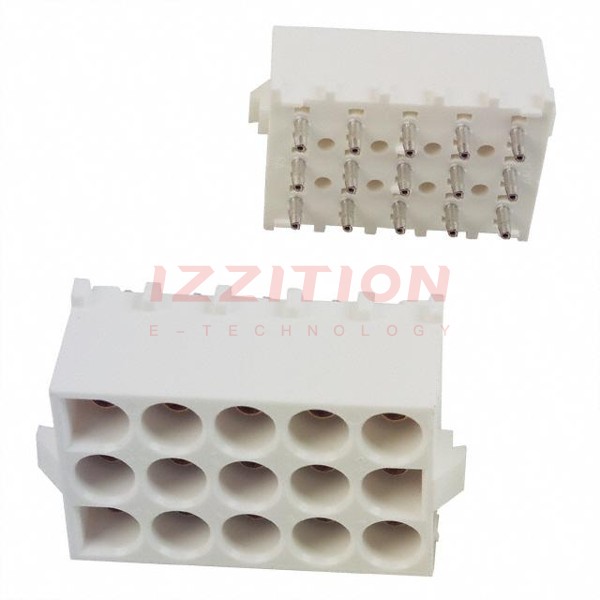

| Part Number | 350992-4 | 350990-4 | 350991-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Header | Header | Header |
| Contact Type | Female Socket | Female Socket | Female Socket |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Number of Positions | 15 | 9 | 12 |
| Number of Positions Loaded | All | All | All |
| Pitch - Mating | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Number of Rows | 3 | 3 | 3 |
| Row Spacing - Mating | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp |
| Contact Finish - Mating | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - |
| Insulation Color | Natural | Natural | Natural |
| Insulation Height | 0.550" (13.97mm) | 0.550" (13.97mm) | 0.550" (13.97mm) |
| Contact Length - Post | 0.215" (5.46mm) | 0.215" (5.46mm) | 0.215" (5.46mm) |
| Operating Temperature | - | - | - |
| Material Flammability Rating | UL94 V-2 | UL94 V-2 | UL94 V-2 |
| Contact Finish - Post | Tin | Tin | Tin |
| Mated Stacking Heights | - | - | - |
| Ingress Protection | - | - | - |
| Features | - | - | - |
| Current Rating (Amps) | - | - | - |
| Voltage Rating | - | - | - |
