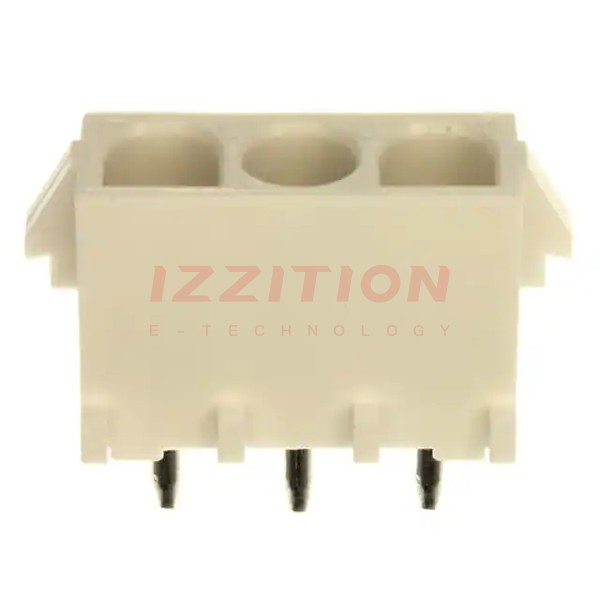

| Part Number | 350832-1 | 350832-4 | 350835-1 | 350836-1 | 350833-1 | 350834-1 | 350837-1 | 350832-2 | 350830-1 | 350831-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Connector Type | Header | Header | Header | Header | Header | Header | Header | Header | Header | Header |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Number of Positions | 3 | 3 | 9 | 12 | 4 | 6 | 15 | 3 | 15 | 2 |
| Number of Positions Loaded | All | All | All | All | All | All | All | All | All | All |
| Pitch - Mating | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Number of Rows | 1 | 1 | 3 | 3 | 1 | 3 | 3 | 1 | 3 | 1 |
| Row Spacing - Mating | - | - | 0.250" (6.35mm) | 0.250" (6.35mm) | - | 0.250" (6.35mm) | 0.250" (6.35mm) | - | 0.250" (6.35mm) | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp |
| Contact Finish - Mating | Tin | Gold | Tin | Tin | Tin | Tin | Tin | Gold | Tin | Tin |
| Contact Finish Thickness - Mating | - | 30.0µin (0.76µm) | - | - | - | - | - | 30.0µin (0.76µm) | - | - |
| Insulation Color | White | White | Natural | Natural | White | Natural | Natural | White | Natural | White |
| Insulation Height | 0.550" (13.97mm) | 0.550" (13.97mm) | 0.550" (13.97mm) | 0.550" (13.97mm) | 0.550" (13.97mm) | 0.550" (13.97mm) | 0.550" (13.97mm) | 0.550" (13.97mm) | 0.550" (13.97mm) | 0.550" (13.97mm) |
| Contact Length - Post | 0.215" (5.46mm) | 0.215" (5.46mm) | 0.215" (5.46mm) | 0.215" (5.46mm) | 0.215" (5.46mm) | 0.215" (5.46mm) | 0.215" (5.46mm) | 0.215" (5.46mm) | 0.155" (3.94mm) | 0.215" (5.46mm) |
| Operating Temperature | - | - | - | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin-Lead | Tin | Tin |
| Mated Stacking Heights | - | - | - | - | - | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - |
| Current Rating (Amps) | - | - | - | - | - | - | - | - | - | - |
| Voltage Rating | - | - | - | - | - | - | - | - | - | - |
