350827-2
  • Share:

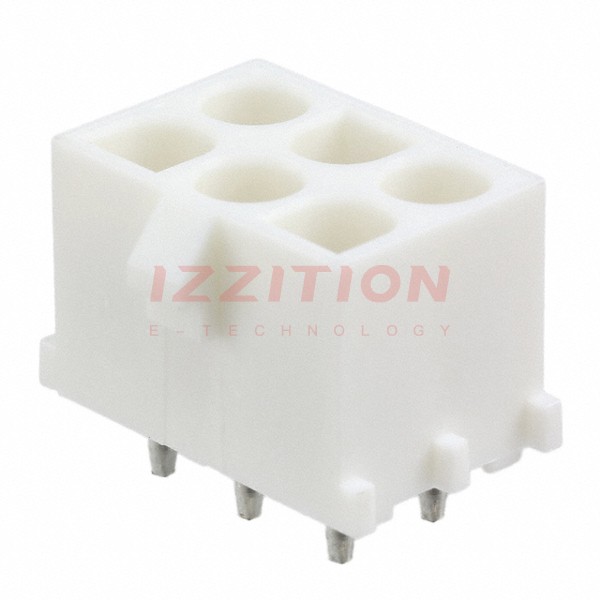

TE Connectivity AMP Connectors 350827-2

Manufacturer No:
350827-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
350827-2 Datasheet
ECAD Model:
-
Description:
CONN HDR 6POS 0.25 GOLD PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Female Socket
Style:Board to Cable/Wire
Number of Positions:6
Number of Positions Loaded:All
Pitch - Mating:0.250" (6.35mm)
Number of Rows:3
Row Spacing - Mating:0.250" (6.35mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Natural
Insulation Height:0.550" (13.97mm)
Contact Length - Post:0.155" (3.94mm)
Operating Temperature:-
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin-Lead
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$3.19
7

Please send RFQ , we will respond immediately.

Similar Products

Part Number 350827-2 350827-4   350829-2   350828-2   350837-2   350824-2   350825-2   350826-2   350827-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Obsolete Active Active Active Active Active Active
Connector Type Header Header Header Header Header Header Header Header Header
Contact Type Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Number of Positions 6 6 12 9 15 2 3 4 6
Number of Positions Loaded All All All All All All All All All
Pitch - Mating 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm)
Number of Rows 3 3 3 3 3 1 1 1 3
Row Spacing - Mating 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) - - - 0.250" (6.35mm)
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Termination Solder Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold Gold Tin
Contact Finish Thickness - Mating 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) -
Insulation Color Natural Natural White Natural Natural White White White Natural
Insulation Height 0.550" (13.97mm) 0.550" (13.97mm) 0.550" (13.97mm) 0.550" (13.97mm) 0.550" (13.97mm) 0.550" (13.97mm) 0.550" (13.97mm) 0.550" (13.97mm) 0.550" (13.97mm)
Contact Length - Post 0.155" (3.94mm) 0.155" (3.94mm) 0.155" (3.94mm) 0.155" (3.94mm) 0.215" (5.46mm) 0.155" (3.94mm) 0.155" (3.94mm) 0.155" (3.94mm) 0.155" (3.94mm)
Operating Temperature - - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Contact Finish - Post Tin-Lead Tin Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin
Mated Stacking Heights - - - - - - - - -
Ingress Protection - - - - - - - - -
Features - - - - - - - - -
Current Rating (Amps) - - - - - - - - -
Voltage Rating - - - - - - - - -
