350764-3
  • Share:

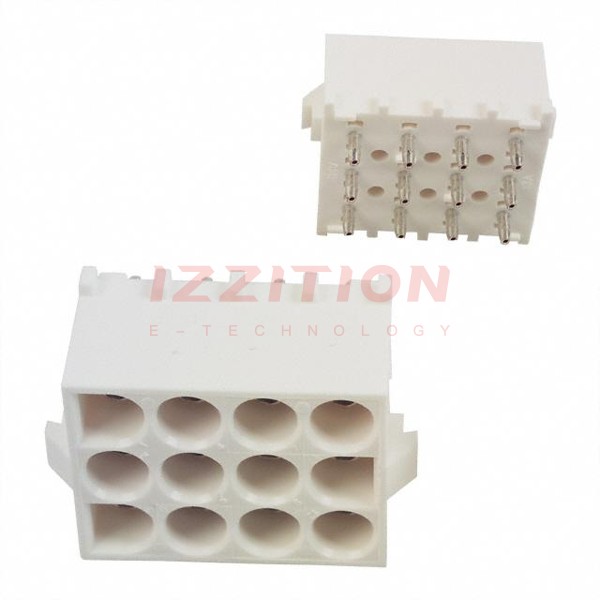

TE Connectivity AMP Connectors 350764-3

Manufacturer No:
350764-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
350764-3 Datasheet
ECAD Model:
-
Description:
CONN HDR 12POS 0.25 GOLD PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Female Socket
Style:Board to Cable/Wire
Number of Positions:12
Number of Positions Loaded:All
Pitch - Mating:0.250" (6.35mm)
Number of Rows:3
Row Spacing - Mating:0.250" (6.35mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Natural
Insulation Height:0.550" (13.97mm)
Contact Length - Post:0.155" (3.94mm)
Operating Temperature:-
Material Flammability Rating:UL94 V-2
Contact Finish - Post:Tin-Lead
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
167

Please send RFQ , we will respond immediately.

Similar Products

Part Number 350764-3 350764-4   350764-5   350765-3   350760-3   350761-3   350762-3   350763-3
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active
Connector Type Header Header Header Header Header Header Header Header
Contact Type Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Number of Positions 12 12 12 15 3 4 6 9
Number of Positions Loaded All All All All All All All All
Pitch - Mating 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm)
Number of Rows 3 3 3 3 1 1 3 3
Row Spacing - Mating 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) 0.250" (6.35mm) - - 0.250" (6.35mm) 0.250" (6.35mm)
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Termination Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp
Contact Finish - Mating Gold Tin Gold Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm) - 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm)
Insulation Color Natural Natural Natural Natural Natural Natural Natural Natural
Insulation Height 0.550" (13.97mm) 0.550" (13.97mm) 0.550" (13.97mm) 0.550" (13.97mm) 0.550" (13.97mm) 0.550" (13.97mm) 0.550" (13.97mm) 0.550" (13.97mm)
Contact Length - Post 0.155" (3.94mm) 0.155" (3.94mm) 0.155" (3.94mm) 0.155" (3.94mm) 0.155" (3.94mm) 0.155" (3.94mm) 0.155" (3.94mm) 0.155" (3.94mm)
Operating Temperature - - - - - - - -
Material Flammability Rating UL94 V-2 UL94 V-2 UL94 V-2 UL94 V-2 UL94 V-2 UL94 V-2 UL94 V-2 UL94 V-2
Contact Finish - Post Tin-Lead Tin Tin Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Mated Stacking Heights - - - - - - - -
Ingress Protection - - - - - - - -
Features - - - - - - - -
Current Rating (Amps) - - - - - - - -
Voltage Rating - - - - - - - -
