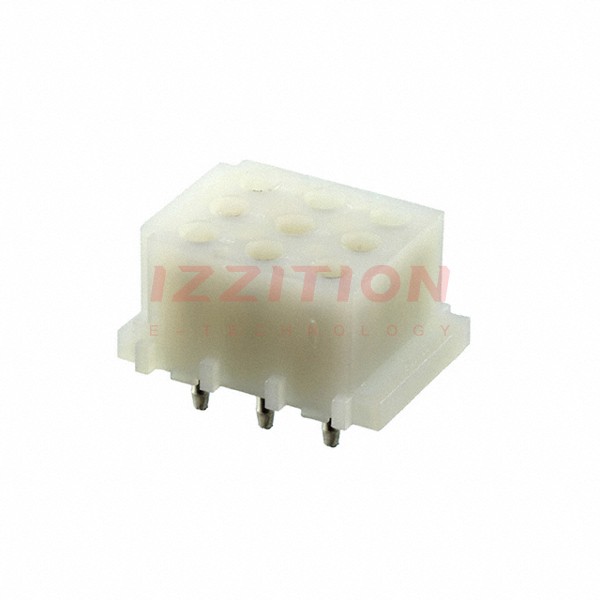

| Part Number | 350642-1 | 350643-1 | 350644-1 | 350641-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete |
| Connector Type | Header | Header | Header | Header |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Number of Positions | 9 | 12 | 15 | 6 |
| Number of Positions Loaded | All | All | All | All |
| Pitch - Mating | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) |
| Number of Rows | 3 | 3 | 3 | 2 |
| Row Spacing - Mating | 0.202" (5.13mm) | 0.202" (5.13mm) | 0.202" (5.13mm) | 0.202" (5.13mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Contact Finish - Mating | Tin | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - | - |
| Insulation Color | Natural | Natural | Natural | Natural |
| Insulation Height | 0.470" (11.94mm) | 0.470" (11.94mm) | 0.470" (11.94mm) | 0.470" (11.94mm) |
| Contact Length - Post | 0.160" (4.06mm) | 0.160" (4.06mm) | 0.160" (4.06mm) | 0.160" (4.06mm) |
| Operating Temperature | - | - | - | - |
| Material Flammability Rating | - | - | - | - |
| Contact Finish - Post | Tin | Tin | Tin | Tin |
| Mated Stacking Heights | - | - | - | - |
| Ingress Protection | - | - | - | - |
| Features | - | - | - | - |
| Current Rating (Amps) | - | - | - | - |
| Voltage Rating | - | - | - | - |
