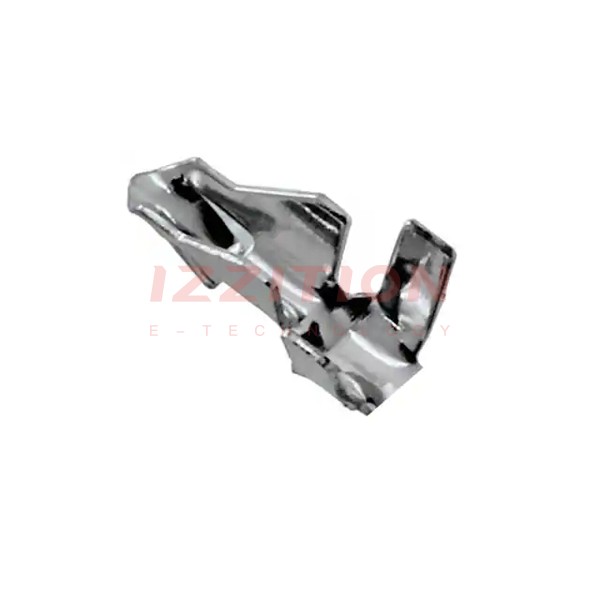

| Part Number | 350566-7 | 350566-1 | 350566-3 | 350566-5 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active | Active |
| Terminal Type | Through Board, Locking | Through Board, Locking | Through Board, Locking | Through Board, Locking |
| Hole Diameter | 0.072" ~ 0.077" (1.83mm ~ 1.96mm) | 0.072" ~ 0.077" (1.83mm ~ 1.96mm) | 0.072" ~ 0.077" (1.83mm ~ 1.96mm) | 0.072" ~ 0.077" (1.83mm ~ 1.96mm) |
| Insulation Diameter | 0.060" ~ 0.110" (1.52mm ~ 2.79mm) | 0.060" ~ 0.110" (1.52mm ~ 2.79mm) | 0.060" ~ 0.110" (1.52mm ~ 2.79mm) | 0.060" ~ 0.110" (1.52mm ~ 2.79mm) |
| Length - Overall | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Wire Gauge | 18-22 AWG | 18-22 AWG | 18-22 AWG | 18-22 AWG |
| Contact Material | Brass | Phosphor Bronze | Brass | Brass |
| Contact Finish | Tin | Tin-Lead | Tin | Tin |
