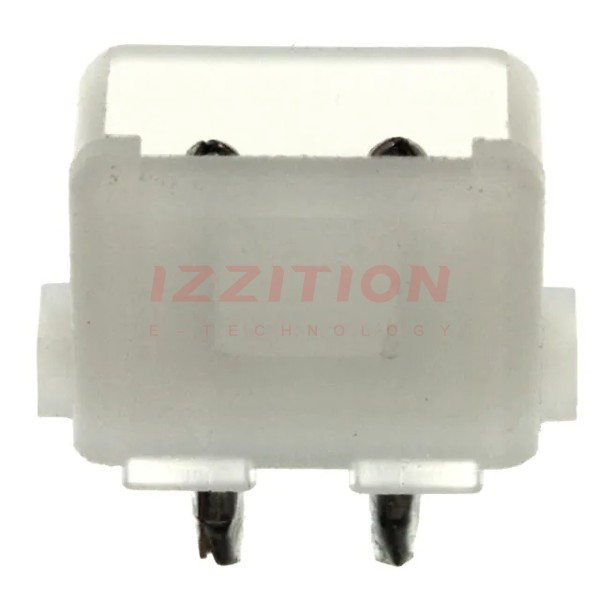

| Part Number | 350540-1 | 350543-1 | 350544-1 | 350541-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Number of Positions | 2 | 4 | 4 | 3 |
| Number of Rows | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - |
| Number of Positions Loaded | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp |
| Contact Length - Mating | - | - | - | - |
| Contact Length - Post | 0.210" (5.33mm) | 0.150" (3.81mm) | 0.210" (5.33mm) | 0.150" (3.81mm) |
| Overall Contact Length | - | - | - | - |
| Insulation Height | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) |
| Contact Shape | Circular | Circular | Circular | Circular |
| Contact Finish - Mating | Tin | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - | - |
| Contact Finish - Post | Tin | Tin | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | - | - | - |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | UL94 V-2 | - | - | - |
| Insulation Color | Natural | Natural | Natural | Natural |
| Current Rating (Amps) | 12A | - | - | - |
| Voltage Rating | 250VAC | - | - | - |
