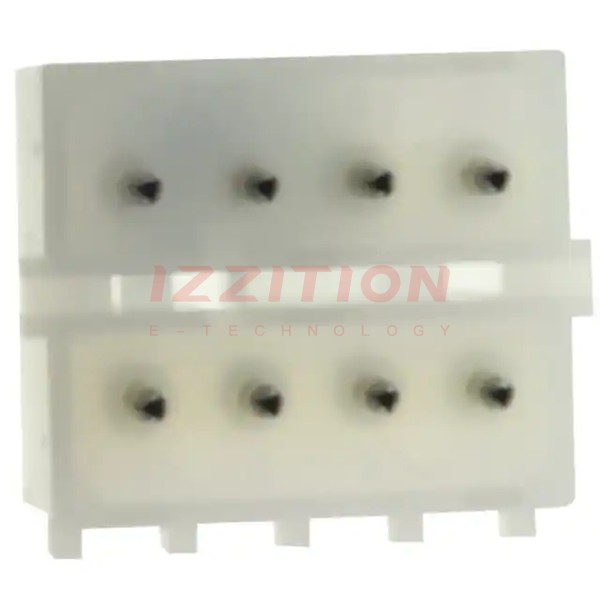

| Part Number | 350212-2 | 350712-2 | 350210-2 | 350211-2 | 350212-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active | Obsolete | Active |
| Connector Type | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.200" (5.08mm) | 0.250" (6.35mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Number of Positions | 8 | 9 | 3 | 4 | 8 |
| Number of Rows | 2 | 3 | 1 | 1 | 2 |
| Row Spacing - Mating | 0.360" (9.14mm) | 0.250" (6.35mm) | - | - | 0.360" (9.14mm) |
| Number of Positions Loaded | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Detent Lock | Locking Ramp | Detent Lock | Detent Lock | Detent Lock |
| Contact Length - Mating | 0.181" (4.60mm) | - | - | 0.181" (4.60mm) | 0.181" (4.60mm) |
| Contact Length - Post | 0.150" (3.81mm) | 0.155" (3.94mm) | - | 0.150" (3.81mm) | 0.150" (3.81mm) |
| Overall Contact Length | - | - | - | - | - |
| Insulation Height | 0.375" (9.53mm) | 0.550" (13.97mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) |
| Contact Shape | Circular | Circular | Circular | Circular | Circular |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Tin |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | - |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Copper Alloy | Phosphor Bronze | Copper Alloy | Phosphor Bronze | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | - | -55°C ~ 85°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-2 | UL94 V-0 | UL94 V-2 | UL94 V-2 | UL94 V-2 |
| Insulation Color | Natural | Natural | Natural | Natural | Natural |
| Current Rating (Amps) | 12A | - | 12A | 12A | 12A |
| Voltage Rating | 250VAC | - | 250VAC | 250VAC | 250VAC |
