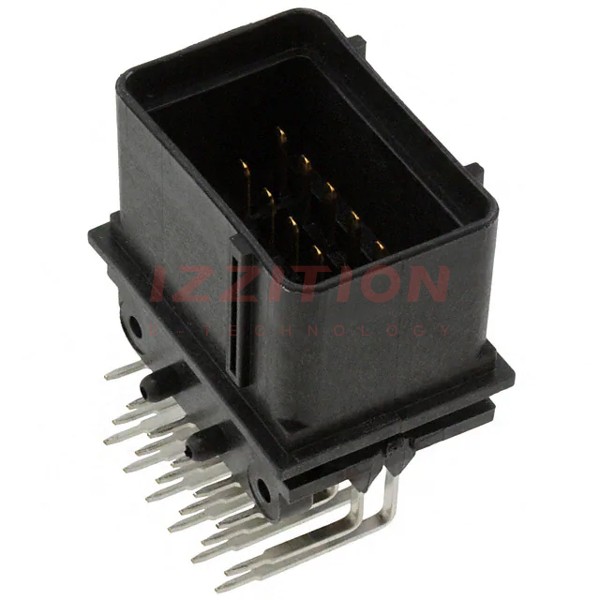

| Part Number | 344103-1 | 344108-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Tab | Tab |
| Pitch - Mating | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Number of Positions | 18 | 36 |
| Number of Rows | 3 | 3 |
| Row Spacing - Mating | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Locking Ramp | Locking Ramp |
| Contact Length - Mating | - | - |
| Contact Length - Post | - | - |
| Overall Contact Length | - | - |
| Insulation Height | 1.165" (29.60mm) | 1.165" (29.60mm) |
| Contact Shape | Rectangular | Rectangular |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | - | - |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Brass | Brass |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled |
| Features | Board Guide | Board Guide |
| Operating Temperature | - | - |
| Ingress Protection | - | - |
| Material Flammability Rating | - | - |
| Insulation Color | Black | Black |
| Current Rating (Amps) | - | - |
| Voltage Rating | - | - |
