Please send RFQ , we will respond immediately.

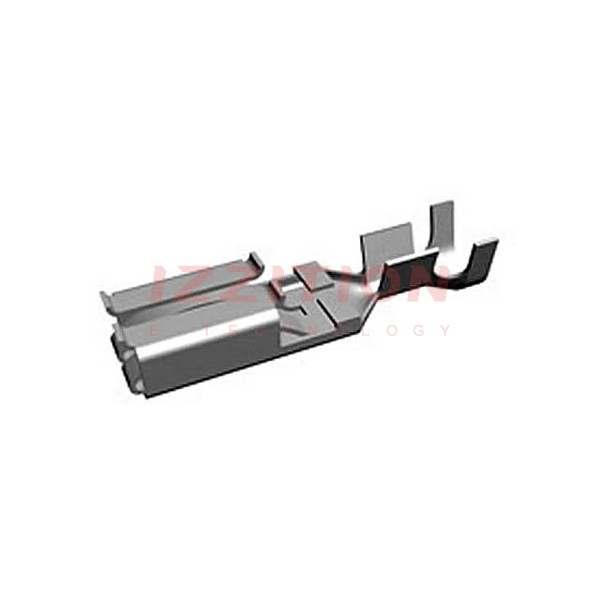

| Part Number | 342413-4 | 342413-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Standard | Standard |
| Gender | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.312" (7.92mm) | 0.312" (7.92mm) |
| Length - Overall | 0.920" (23.37mm) | 0.920" (23.37mm) |
| Termination | Crimp | Crimp |
| Wire Gauge | 14-20 AWG | 14-20 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - |
| Color | - | - |
| Contact Material | Phosphor Bronze | Brass |
| Contact Finish | Tin | Tin |
