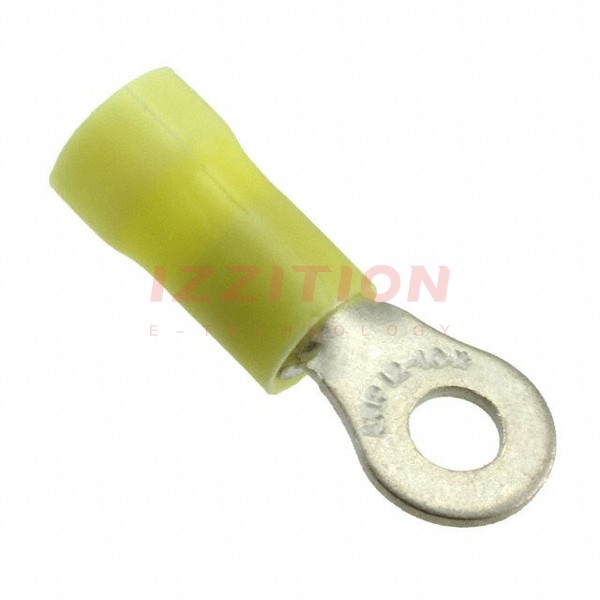

| Part Number | 342183-1 | 342184-1 | 342186-1 | 342185-1 | 342103-1 | 342143-1 | 342182-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | M4 Stud | M5 Stud | 5/16 Stud | 1/4 Stud | 8 Stud | M4 Stud | - |
| Thickness | 0.039" (0.99mm) | 0.039" (0.99mm) | 0.039" (0.99mm) | 0.039" (0.99mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.039" (0.99mm) |
| Width - Outer Edges | 0.374" (9.50mm) | 0.374" (9.50mm) | 0.531" (13.49mm) | 0.531" (13.49mm) | 0.311" (7.90mm) | 0.343" (8.71mm) | 0.374" (9.50mm) |
| Length - Overall | 1.103" (28.02mm) | 1.098" (27.89mm) | 1.343" (34.10mm) | 1.343" (34.10mm) | 0.861" (21.87mm) | 0.874" (22.20mm) | 1.103" (28.02mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 10-12 AWG | 10-12 AWG | 10-12 AWG | 16-22 AWG | 14-16 AWG | 10-12 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | - |
| Color | Yellow | Yellow | Yellow | Yellow | Red | Blue | Yellow |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
