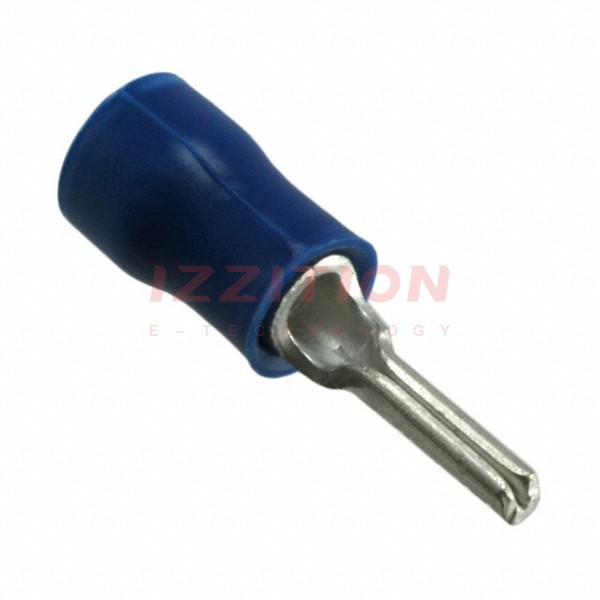

| Part Number | 342166-1 | 342196-1 | 342126-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Pin Diameter | Circular - 0.071" (1.80mm) Dia | Circular - 0.102" (2.60mm) Dia | Circular - 0.071" (1.80mm) Dia |
| Length - Pin | 0.264" (6.71mm) | 0.390" (9.91mm) | 0.264" (6.71mm) |
| Length - Overall | 0.810" (20.57mm) | 1.158" (29.41mm) | 0.810" (20.57mm) |
| Wire Gauge | 14-16 AWG | 10-12 AWG | 16-22 AWG |
| Insulation Diameter | 0.118" ~ 0.193" (3.00mm ~ 4.90mm) | 0.150" ~ 0.252" (3.81mm ~ 6.40mm) | 0.106" ~ 0.142" (2.69mm ~ 3.61mm) |
| Insulation | Insulated | Insulated | Insulated |
| Termination | Crimp | Crimp | Crimp |
| Features | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Blue | Yellow | Red |
