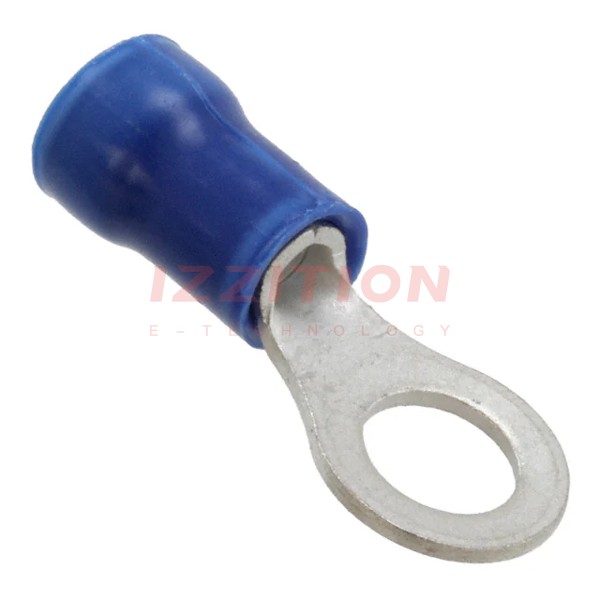

| Part Number | 342144-1 | 342184-1 | 342145-1 | 342104-1 | 342142-1 | 342143-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | M5 Stud | M5 Stud | 1/4 Stud | M5 Stud | 6 Stud | M4 Stud |
| Thickness | 0.031" (0.79mm) | 0.039" (0.99mm) | - | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.343" (8.71mm) | 0.374" (9.50mm) | 0.469" (11.91mm) | 0.311" (7.90mm) | 0.252" (6.40mm) | 0.343" (8.71mm) |
| Length - Overall | 0.882" (22.40mm) | 1.098" (27.89mm) | 1.063" (27.00mm) | 0.861" (21.87mm) | 0.720" (18.29mm) | 0.874" (22.20mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 10-12 AWG | 13.5-17 AWG | 16-22 AWG | 14-16 AWG | 14-16 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | - | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Blue | Yellow | Blue | Red | Blue | Blue |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin |
