Please send RFQ , we will respond immediately.

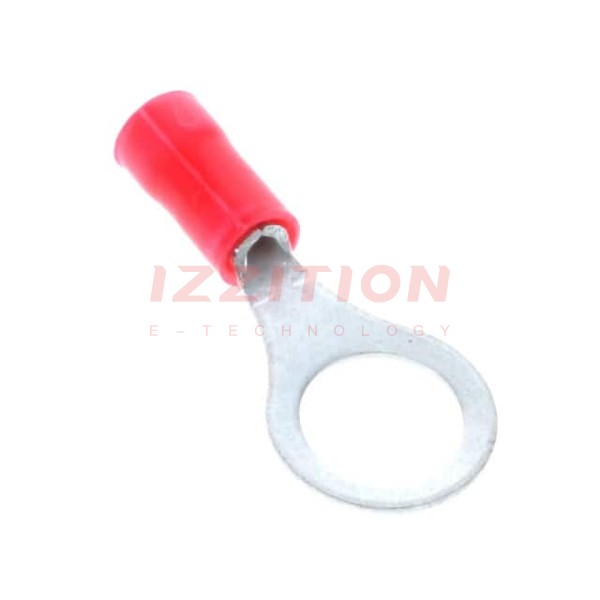

| Part Number | 342106-1 | 342186-1 | 342101-1 | 342102-1 | 342103-1 | 342104-1 | 342105-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | M8 Stud | 5/16 Stud | M2.5 Stud | 6 Stud | 8 Stud | M5 Stud | M6 Stud |
| Thickness | 0.032" (0.81mm) | 0.039" (0.99mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.032" (0.81mm) |
| Width - Outer Edges | 0.468" (11.89mm) | 0.531" (13.49mm) | 0.220" (5.59mm) | 0.220" (5.59mm) | 0.311" (7.90mm) | 0.311" (7.90mm) | 0.468" (11.89mm) |
| Length - Overall | 1.096" (27.84mm) | 1.343" (34.10mm) | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.861" (21.87mm) | 0.861" (21.87mm) | 1.102" (27.99mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 10-12 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Red | Yellow | Red | Red | Red | Red | Red |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
