Please send RFQ , we will respond immediately.

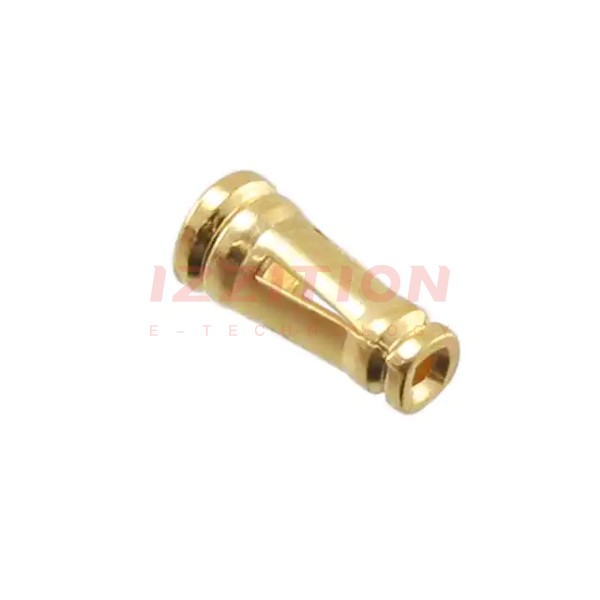

| Part Number | 322-HCS8P2-100 | 322-HCS8P3-100 | 322-HCS5P2-100 | 322-HCS6P2-100 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete |
| Tail Type | No Tail | No Tail | No Tail | No Tail |
| Termination | Solder | Solder | Solder | Solder |
| Length - Overall | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | - |
| Accepts Pin Diameter | 0.016" ~ 0.021" (0.41mm ~ 0.53mm) | 0.025" ~ 0.035" (0.64mm ~ 0.89mm) | - | 0.020" ~ 0.030" (0.51mm ~ 0.76mm) |
| Accepts Square Pin Size | 0.025" (0.64mm) | 0.025" (0.64mm) | - | - |
| Pin Hole Diameter | - | - | - | - |
| Mounting Hole Diameter | 0.044" (1.12mm) | 0.044" (1.12mm) | 0.044" (1.12mm) | 0.063" (1.60mm) |
| Flange Diameter | - | - | - | - |
| Tail Diameter | - | - | - | - |
| Socket Depth | - | - | - | - |
| Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Contact Finish | Gold | Tin-Lead | Gold | Gold |
| Contact Finish Thickness | - | - | 24.8µin (0.63µm) | 30.0µin (0.76µm) |
