316370-6
  • Share:

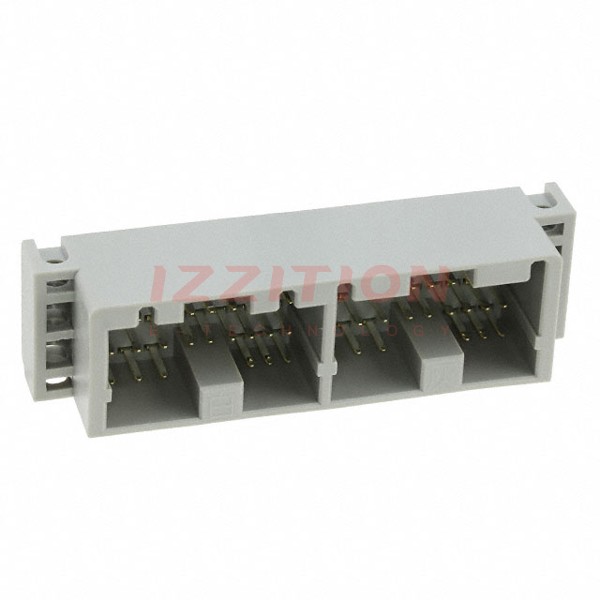

TE Connectivity AMP Connectors 316370-6

Manufacturer No:
316370-6
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
316370-6 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 48POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:-
Contact Type:Tab
Pitch - Mating:-
Number of Positions:48
Number of Rows:3
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.276" (7.00mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.783" (19.89mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Mounting Flange
Operating Temperature:-40°C ~ 120°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Gray
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:-
0 Remaining View Similar

In Stock

$6.48
108

Please send RFQ , we will respond immediately.
