3-87346-0
  • Share:

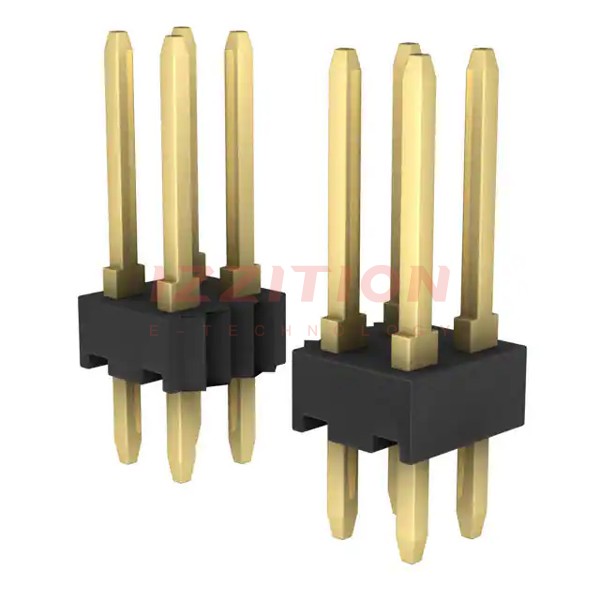

TE Connectivity AMP Connectors 3-87346-0

Manufacturer No:
3-87346-0
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
3-87346-0 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 60POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:60
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.318" (8.08mm)
Contact Length - Post:0.220" (5.58mm)
Overall Contact Length:0.628" (15.95mm)
Insulation Height:0.090" (2.29mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:-
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
442

Please send RFQ , we will respond immediately.
