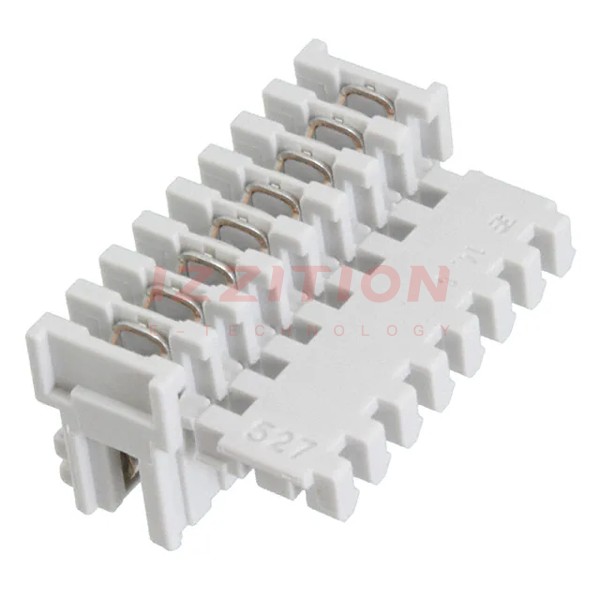

| Part Number | 3-829868-8 | 3-829868-3 | 3-829868-4 | 3-829868-5 | 3-829868-6 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 8 | 3 | 4 | 5 | 6 |
| Pitch | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | - | - | - | - | - |
| Cable Termination | IDC | IDC | IDC | IDC | IDC |
| Wire Type | Discrete | Discrete | Discrete | Discrete | Discrete |
| Wire Gauge | 22 AWG | 22 AWG | 22 AWG | 22 AWG | 22 AWG |
| Features | Mates to PCB | Closed End | Mates to PCB | Mates to PCB | Mates to PCB |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness | - | - | - | - | - |
| Color | Gray | Gray | Gray | Gray | Gray |
