3-828590-4
  • Share:

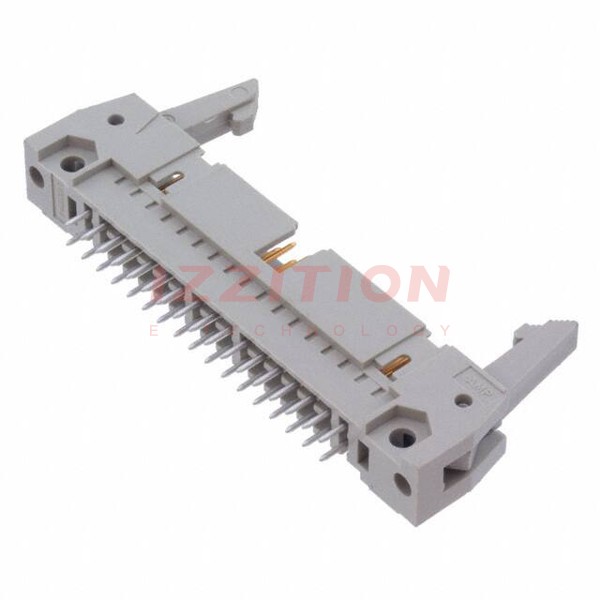

TE Connectivity AMP Connectors 3-828590-4

Manufacturer No:
3-828590-4
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
3-828590-4 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 34POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:34
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:0.246" (6.25mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:0.652" (16.56mm)
Insulation Height:0.346" (8.80mm)
Contact Shape:Circular
Contact Finish - Mating:Gold or Gold-Palladium
Contact Finish Thickness - Mating:31.5µin (0.80µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyester, Glass Filled
Features:Keying Slot, Mounting Flange
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Gray
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$2.56
225

Please send RFQ , we will respond immediately.
