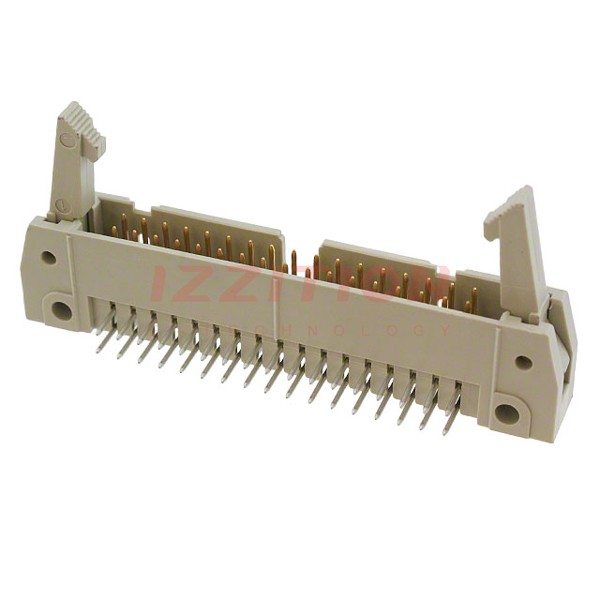

TE Connectivity AMP Connectors 3-828586-4

Manufacturer No:
3-828586-4
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
3-828586-4 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 34POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:34
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:-
Contact Shape:-
Contact Finish - Mating:Gold or Gold-Palladium
Contact Finish Thickness - Mating:31.5µin (0.80µm)
Contact Finish - Post:-
Contact Material:-
Insulation Material:-
Features:Keying Slot, Mounting Flange
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Gray
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$2.88
60

Please send RFQ , we will respond immediately.
