3-826936-2
  • Share:

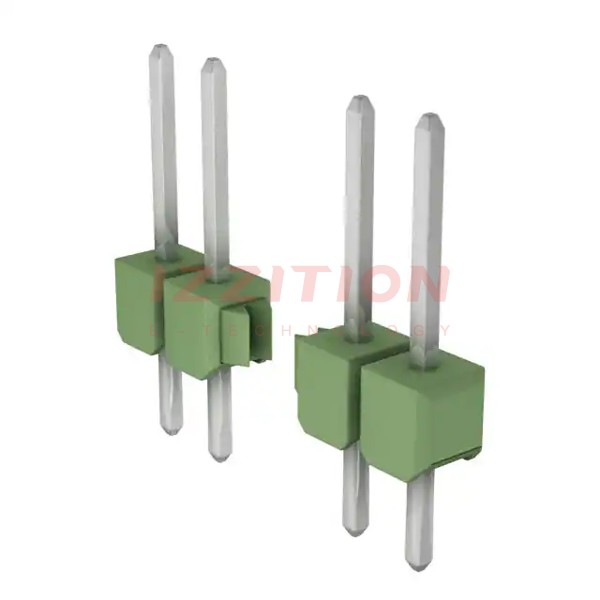

TE Connectivity AMP Connectors 3-826936-2

Manufacturer No:
3-826936-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
3-826936-2 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 32POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:32
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.228" (5.80mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:0.465" (11.81mm)
Insulation Height:0.110" (2.79mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:78.7µin (2.00µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Green
Current Rating (Amps):5A
Voltage Rating:-
0 Remaining View Similar

In Stock

$2.62
160

Please send RFQ , we will respond immediately.
