3-644893-4
  • Share:

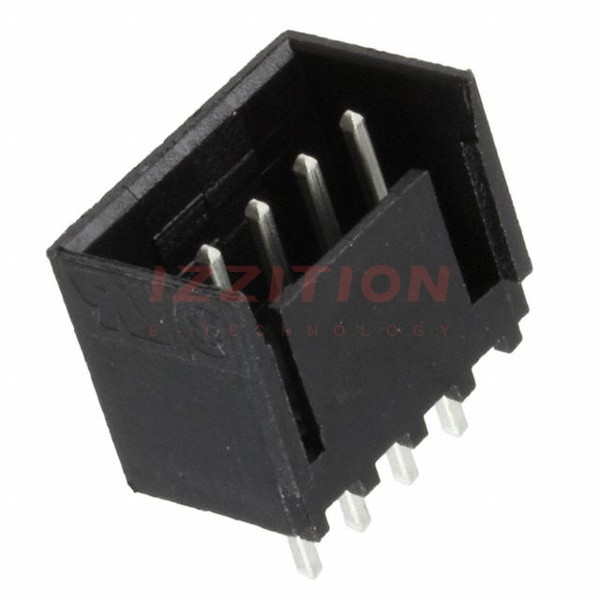

TE Connectivity AMP Connectors 3-644893-4

Manufacturer No:
3-644893-4
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
3-644893-4 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 4POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.280" (7.11mm)
Contact Length - Post:0.140" (3.56mm)
Overall Contact Length:0.520" (13.21mm)
Insulation Height:0.410" (10.41mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyester
Features:Board Guide
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$1.49
222

Please send RFQ , we will respond immediately.
