Please send RFQ , we will respond immediately.

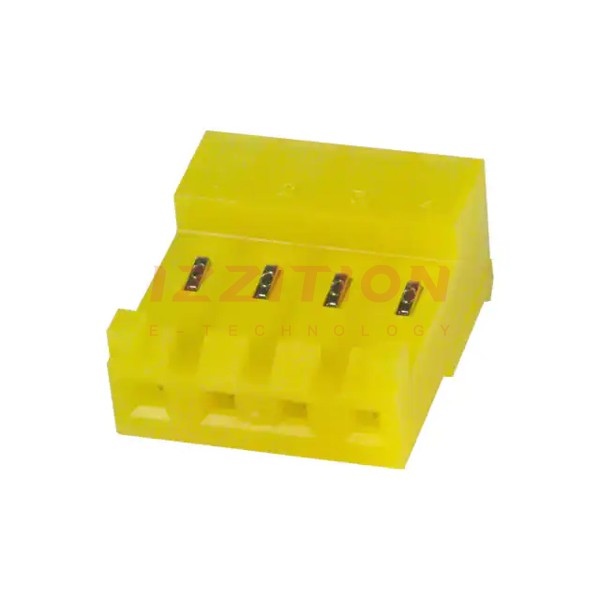

| Part Number | 3-644663-4 | 3-644563-4 | 3-644662-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket |
| Number of Positions | 4 | 4 | 4 |
| Pitch | 0.156" (3.96mm) | 0.100" (2.54mm) | 0.156" (3.96mm) |
| Number of Rows | 1 | 1 | 1 |
| Row Spacing | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp |
| Cable Termination | IDC | IDC | IDC |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
| Wire Gauge | 20 AWG | 24 AWG | 22 AWG |
| Features | Closed End, Polarizing Key | Feed Through | Closed End, Polarizing Key |
| Contact Finish | Gold | Tin | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 80.0µin (2.03µm) | 30.0µin (0.76µm) |
| Color | Yellow | White | Red |
