3-644629-8
  • Share:

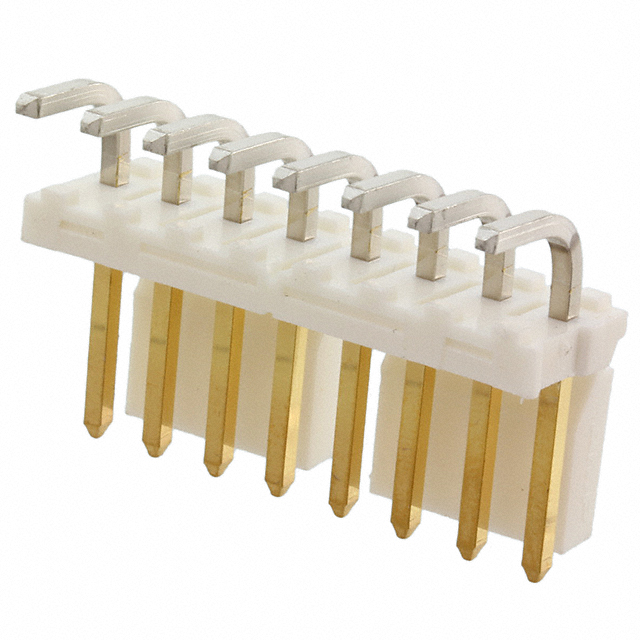

TE Connectivity AMP Connectors 3-644629-8

Manufacturer No:
3-644629-8
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
3-644629-8 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 8POS 3.96MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:8
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.450" (11.43mm)
Contact Length - Post:0.125" (3.18mm)
Overall Contact Length:-
Insulation Height:0.300" (7.62mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Glass Filled
Features:Keying Slot
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:600VAC
0 Remaining View Similar

In Stock

-
399

Please send RFQ , we will respond immediately.
