3-644563-2
  • Share:

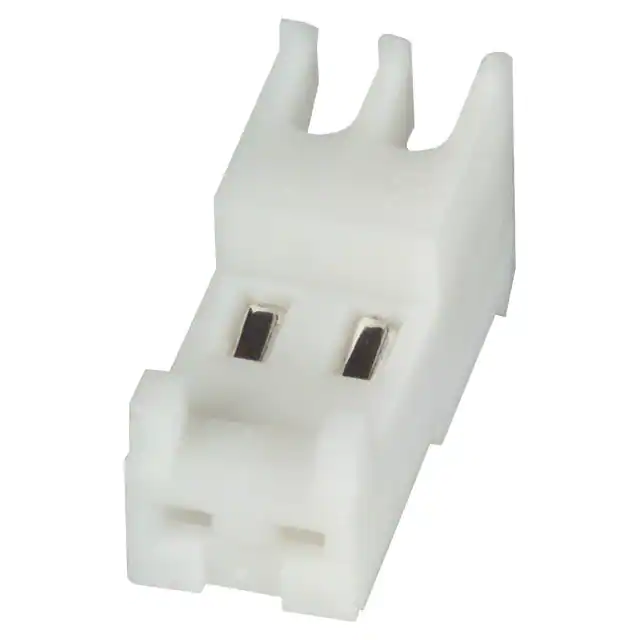

TE Connectivity AMP Connectors 3-644563-2

Manufacturer No:
3-644563-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
3-644563-2 Datasheet
ECAD Model:
-
Description:
CONN RCPT 2POS IDC 24AWG TIN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Number of Positions:2
Pitch:0.100" (2.54mm)
Number of Rows:1
Row Spacing:-
Mounting Type:Free Hanging (In-Line), Right Angle
Fastening Type:Locking Ramp
Cable Termination:IDC
Wire Type:Discrete or Ribbon Cable
Wire Gauge:24 AWG
Features:Feed Through
Contact Finish:Tin
Contact Finish Thickness:80.0µin (2.03µm)
Color:White
0 Remaining View Similar

In Stock

$0.32
2,286

Please send RFQ , we will respond immediately.

Similar Products

Part Number 3-644563-2 3-644563-3   3-644563-4   3-644563-6   3-644564-2   3-644563-5   3-644563-7   3-644563-8   3-644565-2   3-644463-2
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active Active Active
Connector Type Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle
Contact Type Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket
Number of Positions 2 3 4 6 2 5 7 8 2 2
Pitch 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.156" (3.96mm)
Number of Rows 1 1 1 1 1 1 1 1 1 1
Row Spacing - - - - - - - - - -
Mounting Type Free Hanging (In-Line), Right Angle Free Hanging (In-Line), Right Angle Free Hanging (In-Line), Right Angle Free Hanging (In-Line), Right Angle Free Hanging (In-Line), Right Angle Free Hanging (In-Line), Right Angle Free Hanging (In-Line), Right Angle Free Hanging (In-Line), Right Angle Free Hanging (In-Line), Right Angle Free Hanging (In-Line)
Fastening Type Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp -
Cable Termination IDC IDC IDC IDC IDC IDC IDC IDC IDC IDC
Wire Type Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable
Wire Gauge 24 AWG 24 AWG 24 AWG 24 AWG 26 AWG 24 AWG 24 AWG 24 AWG 28 AWG 22 AWG
Features Feed Through Feed Through Feed Through Feed Through Feed Through Feed Through Feed Through Feed Through Feed Through Closed End, Polarizing Key
Contact Finish Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin
Contact Finish Thickness 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm)
Color White White White White Blue White White White Green Red
