3-643828-3
  • Share:

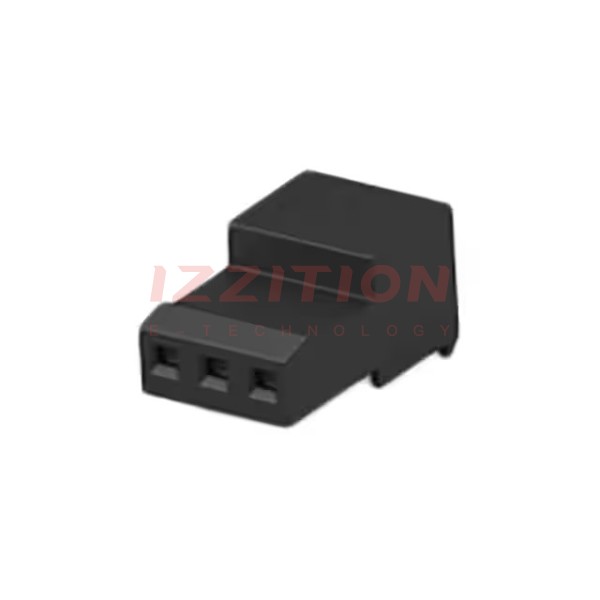

TE Connectivity AMP Connectors 3-643828-3

Manufacturer No:
3-643828-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
3-643828-3 Datasheet
ECAD Model:
-
Description:
CONN RCPT 3POS IDC 26AWG TIN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Number of Positions:3
Pitch:0.100" (2.54mm)
Number of Rows:1
Row Spacing:-
Mounting Type:Free Hanging (In-Line), Right Angle
Fastening Type:Locking Ramp
Cable Termination:IDC
Wire Type:Discrete or Ribbon Cable
Wire Gauge:26 AWG
Features:Closed End
Contact Finish:Tin
Contact Finish Thickness:80.0µin (2.03µm)
Color:Black
0 Remaining View Similar

In Stock

$0.83
159

Please send RFQ , we will respond immediately.

Similar Products

Part Number 3-643828-3 3-643818-3   3-643820-3   3-643821-3
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active
Connector Type Receptacle Receptacle Receptacle Receptacle
Contact Type Female Socket Female Socket Female Socket Female Socket
Number of Positions 3 3 3 3
Pitch 0.100" (2.54mm) 0.156" (3.96mm) 0.156" (3.96mm) 0.156" (3.96mm)
Number of Rows 1 1 1 1
Row Spacing - - - -
Mounting Type Free Hanging (In-Line), Right Angle Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Fastening Type Locking Ramp Locking Ramp Locking Ramp Locking Ramp
Cable Termination IDC IDC IDC IDC
Wire Type Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable Discrete or Ribbon Cable
Wire Gauge 26 AWG 20 AWG 24 AWG 26 AWG
Features Closed End Closed End, Polarizing Key Closed End, Polarizing Key Closed End, Polarizing Key
Contact Finish Tin Tin Tin Tin
Contact Finish Thickness 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm) 80.0µin (2.03µm)
Color Black Yellow White Blue
