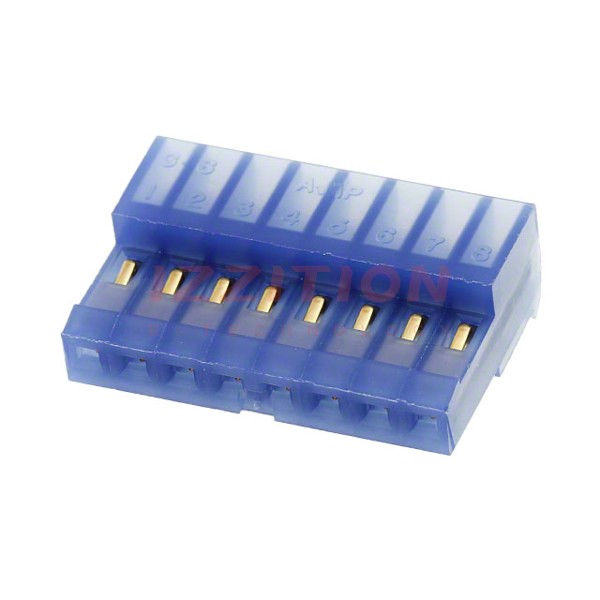

| Part Number | 3-641239-8 | 3-641237-8 | 3-641238-8 | 3-641239-2 | 3-641239-3 | 3-641239-4 | 3-641239-5 | 3-641239-6 | 3-641239-7 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 8 | 8 | 8 | 2 | 3 | 4 | 5 | 6 | 7 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp |
| Cable Termination | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
| Wire Gauge | 26 AWG | 22 AWG | 24 AWG | 26 AWG | 26 AWG | 26 AWG | 26 AWG | 26 AWG | 26 AWG |
| Features | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Blue | Red | White | Blue | Blue | Blue | Blue | Blue | Blue |
