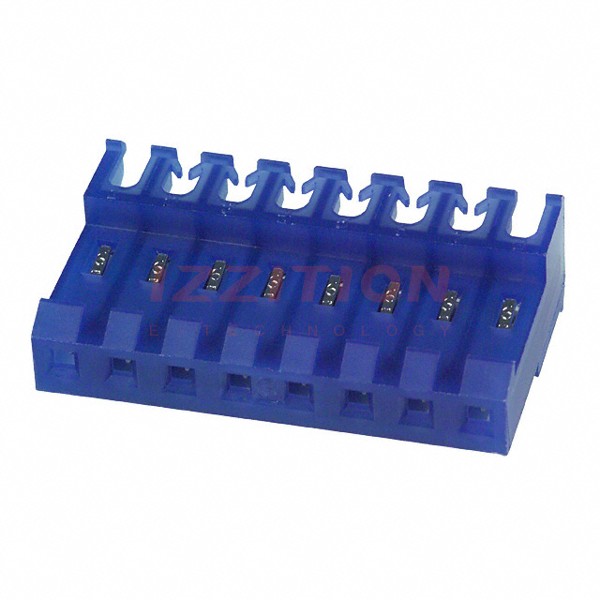

| Part Number | 3-640595-8 | 3-640599-8 | 3-640595-9 | 3-640595-2 | 3-640595-3 | 3-640595-4 | 3-640595-5 | 3-640595-6 | 3-640595-7 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 8 | 8 | 9 | 2 | 3 | 4 | 5 | 6 | 7 |
| Pitch | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp |
| Cable Termination | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
| Wire Gauge | 26 AWG | 18 AWG | 26 AWG | 26 AWG | 26 AWG | 26 AWG | 26 AWG | 26 AWG | 26 AWG |
| Features | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) | 80.0µin (2.03µm) |
| Color | Blue | Orange | Blue | Blue | Blue | Blue | Blue | Blue | Blue |
