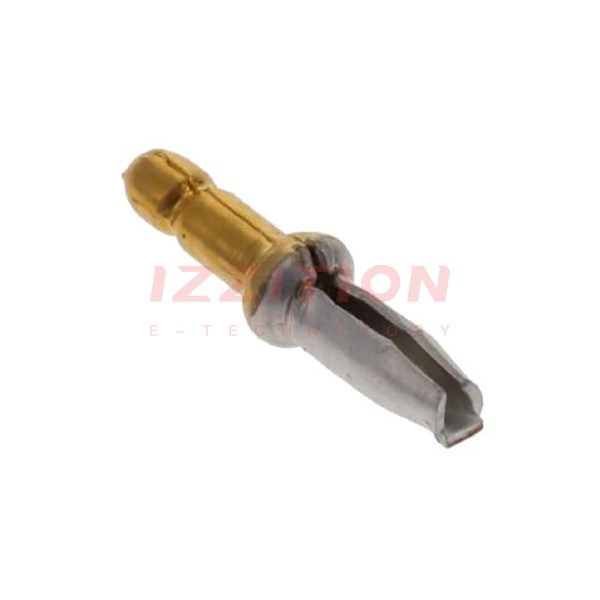

TE Connectivity AMP Connectors 3-60874-2

Manufacturer No:
3-60874-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
3-60874-2 Datasheet
ECAD Model:
-
Description:
CONN PC PIN CIRC 0.058DIA GOLD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Terminal Type:Single Post
Terminal Style:Flanged
Pin Size - Above Flange:0.058" (1.47mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.160" (4.06mm)
Length - Below Flange:0.150" (3.81mm)
Length - Overall:0.380" (9.65mm)
Flange Diameter:0.090" (2.29mm)
Mounting Hole Diameter:0.058" ~ 0.062" (1.47mm ~ 1.57mm)
Mounting Type:Through Hole
Termination:Press-Fit
Insulation:Non-Insulated
Board Thickness:0.062" ~ 0.093" (1.57mm ~ 2.36mm)
Contact Material:Phosphor Bronze
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
0 Remaining View Similar

In Stock

$1.23
769

Please send RFQ , we will respond immediately.
