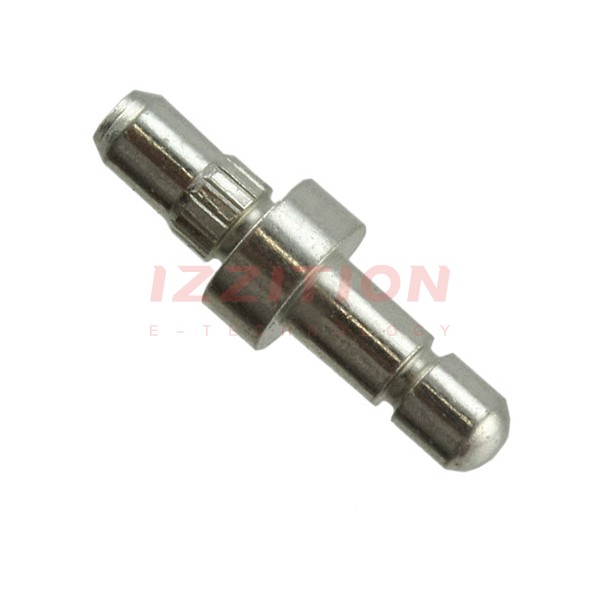

TE Connectivity AMP Connectors 3-60599-1

Manufacturer No:
3-60599-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
3-60599-1 Datasheet
ECAD Model:
-
Description:
CONN PC PIN CIRC 0.058DIA TIN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Terminal Type:Single Post
Terminal Style:Flanged, Pin Retention
Pin Size - Above Flange:0.058" (1.47mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.165" (4.18mm)
Length - Below Flange:0.143" (3.63mm)
Length - Overall:0.352" (8.94mm)
Flange Diameter:0.110" (2.79mm)
Mounting Hole Diameter:0.059" ~ 0.062" (1.50mm ~ 1.57mm)
Mounting Type:Through Hole
Termination:Press-Fit, Knurled
Insulation:Non-Insulated
Board Thickness:0.063" (1.60mm)
Contact Material:Brass
Contact Finish:Tin
Contact Finish Thickness:15.0µin (0.38µm)
0 Remaining View Similar

In Stock

$0.64
831

Please send RFQ , we will respond immediately.
