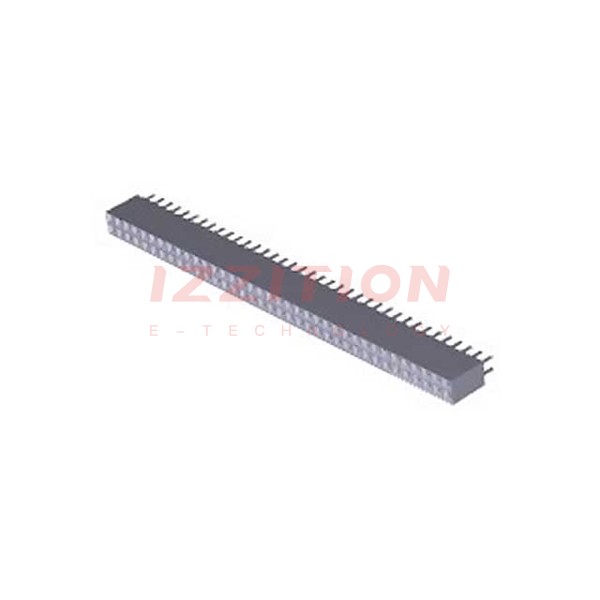

TE Connectivity AMP Connectors 3-535542-7

Manufacturer No:
3-535542-7
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
3-535542-7 Datasheet
ECAD Model:
-
Description:
CONN RCPT 74POS 0.1 GOLD PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle, Bottom or Top Entry
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:74
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Black
Insulation Height:0.265" (6.73mm)
Contact Length - Post:0.130" (3.30mm)
Operating Temperature:-65°C ~ 125°C
Material Flammability Rating:-
Contact Finish - Post:Tin-Lead
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):2A
Voltage Rating:-
0 Remaining View Similar

In Stock

-
503

Please send RFQ , we will respond immediately.

Similar Products

Part Number 3-535542-7 3-535542-8   3-535542-9   3-535512-7   3-535542-0   3-535542-1   3-535542-2   3-535542-3   3-535542-4   3-535542-5   3-535542-6
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Obsolete Obsolete Obsolete Active Active Obsolete Active Obsolete Obsolete Active Obsolete
Connector Type Receptacle, Bottom or Top Entry Receptacle, Bottom or Top Entry Receptacle, Bottom or Top Entry Receptacle Receptacle, Bottom or Top Entry Receptacle, Bottom or Top Entry Receptacle, Bottom or Top Entry Receptacle, Bottom or Top Entry Receptacle, Bottom or Top Entry Receptacle, Bottom or Top Entry Receptacle, Bottom or Top Entry
Contact Type Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable - Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable
Number of Positions 74 76 78 82 60 62 64 66 68 70 72
Number of Positions Loaded All All All All All All All All All All All
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Rows 2 2 2 2 2 2 2 2 2 2 2
Row Spacing - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Mounting Type Through Hole Through Hole Through Hole Through Hole, Right Angle Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Termination Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm)
Insulation Color Black Black Black Black Black Black Black Black Black Black Black
Insulation Height 0.265" (6.73mm) 0.265" (6.73mm) 0.265" (6.73mm) 0.238" (6.05mm) 0.265" (6.73mm) 0.265" (6.73mm) 0.265" (6.73mm) 0.265" (6.73mm) 0.265" (6.73mm) 0.265" (6.73mm) 0.265" (6.73mm)
Contact Length - Post 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.115" (2.92mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm)
Operating Temperature -65°C ~ 125°C -65°C ~ 125°C -65°C ~ 125°C -55°C ~ 125°C -65°C ~ 125°C -65°C ~ 125°C -65°C ~ 125°C -65°C ~ 125°C -65°C ~ 125°C -65°C ~ 125°C -65°C ~ 125°C
Material Flammability Rating - - - UL94 V-0 - - - - - - -
Contact Finish - Post Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Mated Stacking Heights - - - - - - - - - - -
Ingress Protection - - - - - - - - - - -
Features - - - - - - - - - - -
Current Rating (Amps) 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A
Voltage Rating - - - - - - - - - - -
