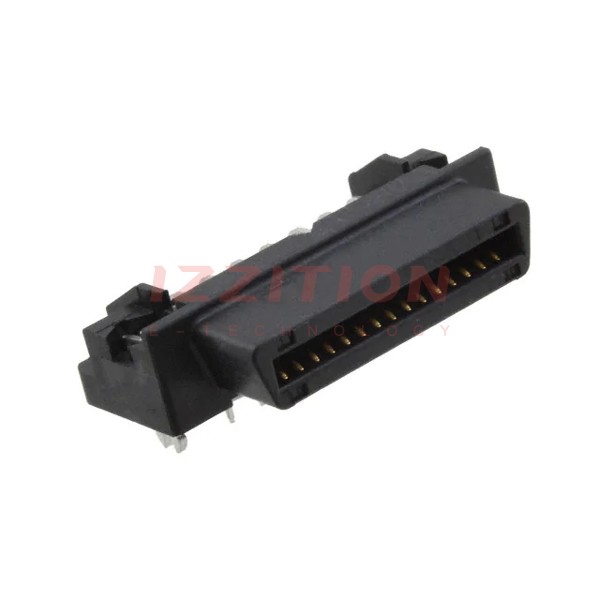

| Part Number | 3-5175474-3 | 3-5175475-3 | 3-5175474-6 | 3-5175472-3 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Style | Outer Shroud Contacts | Outer Shroud Contacts | - | Center Strip Contacts |
| Connector Type | Receptacle | Receptacle | - | Plug |
| Number of Positions | 30 | 30 | - | 30 |
| Number of Rows | 2 | 2 | - | 2 |
| Mounting Type | Through Hole, Right Angle | Through Hole | - | Through Hole, Right Angle |
| Termination | Solder | Solder | - | Solder |
| Flange Feature | - | - | - | - |
| Type | Board to Board, High Density | Board to Board, High Density | - | Board to Board, High Density |
| Features | Board Lock | Board Lock | - | Board Lock |
| Contact Finish | Gold | Gold | - | Gold |
| Contact Finish Thickness | 20.0µin (0.51µm) | 20.0µin (0.51µm) | - | 20.0µin (0.51µm) |
