3-440054-7
  • Share:

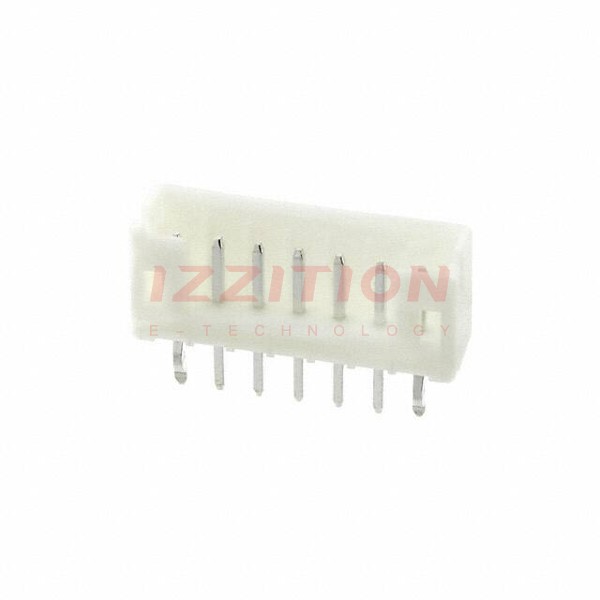

TE Connectivity AMP Connectors 3-440054-7

Manufacturer No:
3-440054-7
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
3-440054-7 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 7POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:7
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:-
Contact Length - Mating:0.132" (3.35mm)
Contact Length - Post:0.134" (3.40mm)
Overall Contact Length:0.335" (8.51mm)
Insulation Height:0.238" (6.05mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:80.0µin (2.03µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):3A
Voltage Rating:250V
0 Remaining View Similar

In Stock

$0.23
2,069

Please send RFQ , we will respond immediately.
