Please send RFQ , we will respond immediately.

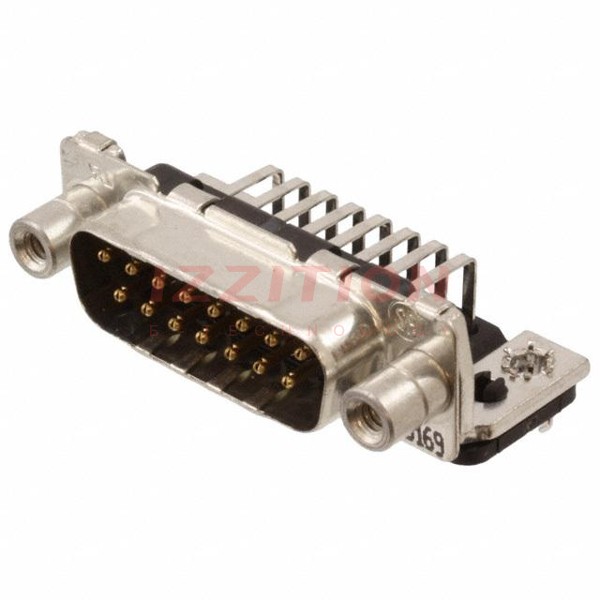

| Part Number | 3-338169-2 | 3-338168-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 15 | 9 |
| Number of Rows | 2 | 2 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A) | 1 (DE, E) |
| Contact Type | Signal | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Mating Side, Female Screwlock (4-40) |
| Termination | Solder | Solder |
| Primary Material | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | - | - |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 6A | 6A |
| Backset Spacing | 0.406" (10.30mm) | 0.406" (10.30mm) |
| Features | Board Lock, Grounding Indents | Board Lock, Grounding Indents |
