Please send RFQ , we will respond immediately.

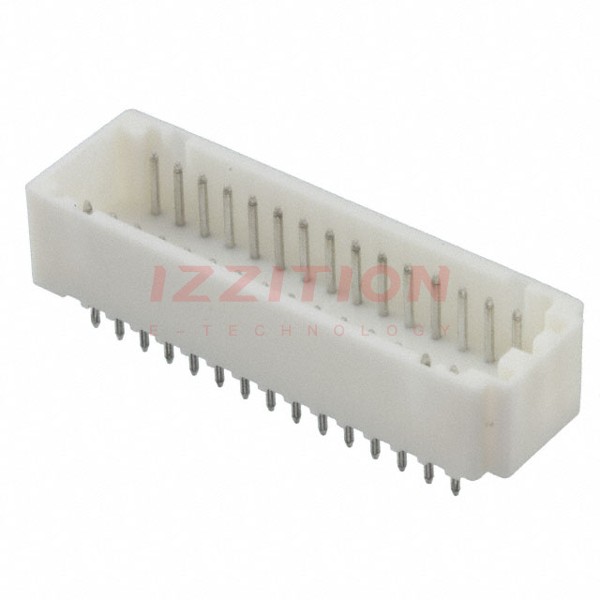

| Part Number | 3-292252-0 | 3-292262-0 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) | 0.059" (1.50mm) |
| Number of Positions | 30 | 30 |
| Number of Rows | 2 | 2 |
| Row Spacing - Mating | 0.256" (6.50mm) | 0.079" (2.00mm) |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Detent Lock | Detent Lock |
| Contact Length - Mating | 0.185" (4.70mm) | - |
| Contact Length - Post | 0.126" (3.20mm) | 0.118" (3.00mm) |
| Overall Contact Length | 0.386" (9.80mm) | - |
| Insulation Height | 0.295" (7.50mm) | 0.358" (9.10mm) |
| Contact Shape | Circular | Square |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | - | - |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Brass | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA), Nylon, Glass Filled |
| Features | - | Board Lock |
| Operating Temperature | - | -30°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Natural | Gray |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Voltage Rating | 125VAC | 50VAC |
