3-292141-0
  • Share:

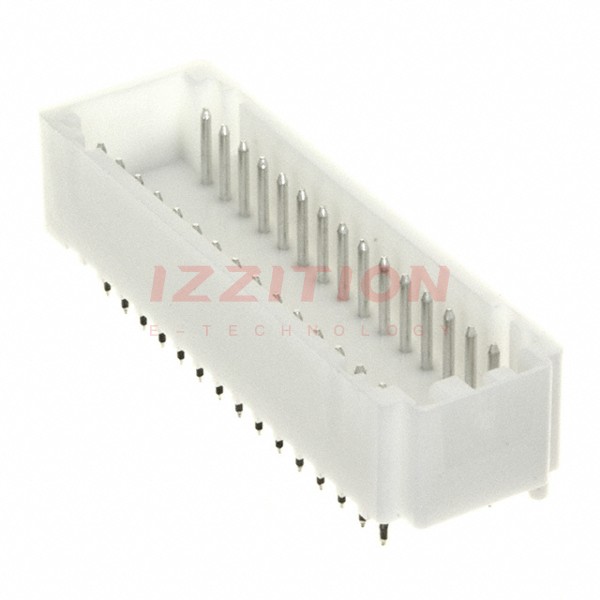

TE Connectivity AMP Connectors 3-292141-0

Manufacturer No:
3-292141-0
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
3-292141-0 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 30POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:30
Number of Rows:2
Row Spacing - Mating:0.256" (6.50mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.185" (4.70mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:0.386" (9.80mm)
Insulation Height:0.295" (7.50mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:Board Guide
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:125VAC
0 Remaining View Similar

In Stock

$1.70
120

Please send RFQ , we will respond immediately.
