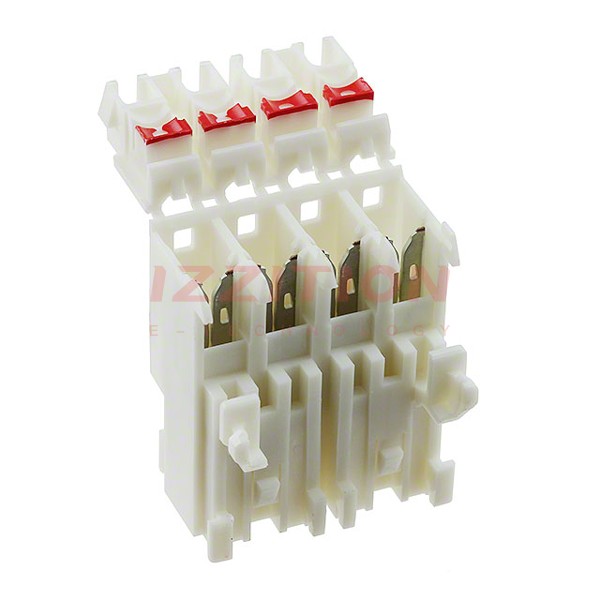

| Part Number | 3-284474-3 | 3-284477-3 | 3-284472-3 | 3-284474-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Connector Type | Plug | Plug | Plug | Plug |
| Contact Type | Tab | Tab | Tab | Tab |
| Number of Positions | 7 | 7 | 2 | 7 |
| Pitch | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Number of Rows | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Fastening Type | Locking Ramp | Latch Lock | Latch Lock | Locking Ramp |
| Cable Termination | IDC | IDC | IDC | IDC |
| Wire Type | Discrete | Discrete | Discrete | Discrete |
| Wire Gauge | - | - | - | - |
| Features | Closed End | - | Closed End | Closed End |
| Contact Finish | Tin | - | Tin | Tin |
| Contact Finish Thickness | - | - | - | - |
| Color | Natural | Natural | Natural | Natural |
