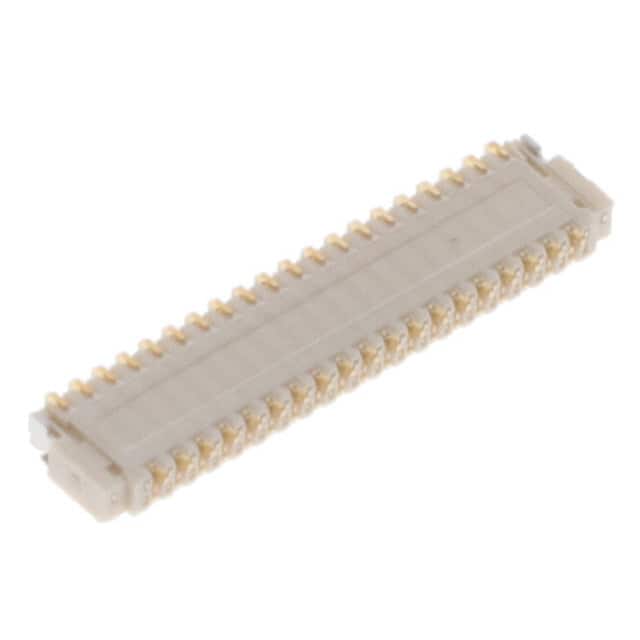

| Part Number | 3-2328724-9 | 3-2328724-1 | 3-2328724-3 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Flat Flex Type | FPC | FPC | FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom | Contacts, Bottom | Contacts, Bottom |
| Number of Positions | 39 | 31 | 33 |
| Pitch | 0.012" (0.30mm) | 0.012" (0.30mm) | 0.012" (0.30mm) |
| Termination | Solder | Solder | Solder |
| FFC, FCB Thickness | 0.20mm | 0.20mm | 0.20mm |
| Height Above Board | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Locking Feature | Flip Lock | Flip Lock | Flip Lock |
| Cable End Type | Tapered | Tapered | Tapered |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Gold | Gold | Gold |
| Housing Material | Thermoplastic | Thermoplastic | Thermoplastic |
| Actuator Material | Thermoplastic | Thermoplastic | Thermoplastic |
| Features | - | - | - |
| Voltage Rating | 30V | 30V | 30V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
