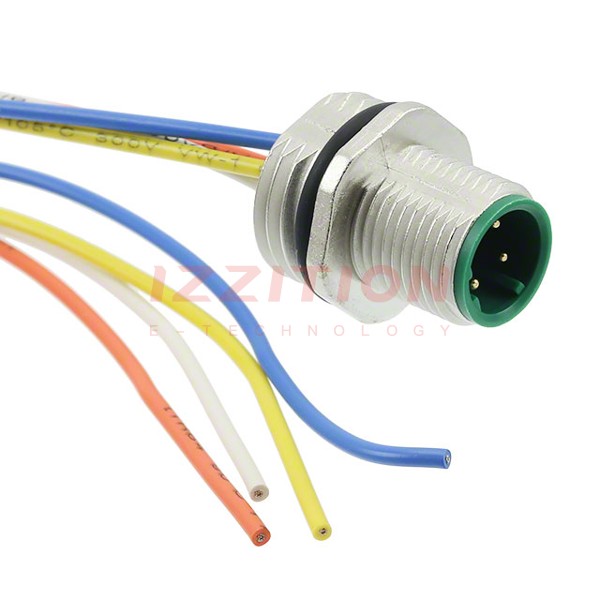

| Part Number | 3-2271136-2 | 3-2271139-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Connector Type | Plug, Male Pins | Receptacle, Female Sockets |
| Number of Positions | 4 | 4 |
| Shell Size - Insert | M12-4 | M12-4 |
| Shell Size, MIL | - | - |
| Mounting Type | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Termination | Wire Leads | Wire Leads |
| Fastening Type | Threaded | Threaded |
| Orientation | D | D |
| Primary Material | Metal | Metal |
| Shell Material | Brass | Zinc Die Cast |
| Shell Finish | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold |
| Color | Silver | Silver |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - |
| Features | - | - |
| Shielding | - | - |
| Current Rating (Amps) | 4A | - |
| Voltage Rating | 250VAC/DC | 250VAC/DC |
| Cable Opening | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
