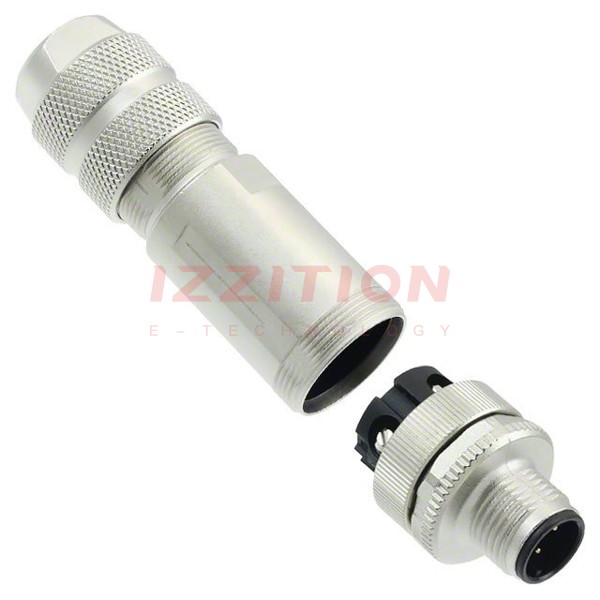

| Part Number | 3-2271115-2 | 3-2271145-2 | 3-2271111-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Type | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins |
| Number of Positions | 4 | 4 | 4 |
| Shell Size - Insert | M12-4 | M12-4 | M12-4 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Panel Mount, Through Hole | Free Hanging (In-Line) |
| Mounting Feature | - | Bulkhead | - |
| Termination | Screw | Solder | Screw |
| Fastening Type | Threaded | Threaded | Threaded |
| Orientation | D | D | A |
| Primary Material | Metal | Metal | Metal |
| Shell Material | Zinc Die Cast | Brass and Zinc Die Cast | Zinc Die Cast |
| Shell Finish | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold |
| Color | Silver | Silver | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - |
| Features | - | - | Backshell |
| Shielding | Shielded | - | Shielded |
| Current Rating (Amps) | 4A | 4A | 4A |
| Voltage Rating | 250VAC/DC | 250VAC/DC | 250V |
| Cable Opening | - | - | 0.197" ~ 0.315" (5.00mm ~ 8.00mm) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
