Please send RFQ , we will respond immediately.

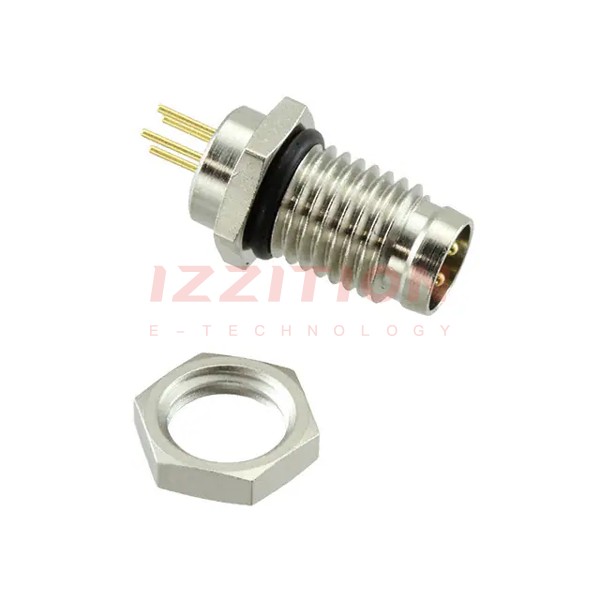

| Part Number | 3-2172069-2 | 3-2172079-2 | 3-2172089-2 | 3-2172062-2 | 3-2172065-2 | 3-2172066-2 | 3-2172067-2 | 3-2172068-2 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active |
| Connector Type | Plug, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Male Pins | Receptacle, Male Pins | Receptacle, Female Sockets | Plug, Male Pins | Receptacle, Female Sockets |
| Number of Positions | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Shell Size - Insert | M8-4 | M12-4 | M8-4 | M12-4 | M12-4 | M12-4 | M8-4 | M8-4 |
| Shell Size, MIL | - | - | - | - | - | - | - | - |
| Mounting Type | Panel Mount, Through Hole | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead | Bulkhead - Front Side Nut | Bulkhead | Bulkhead | Bulkhead | Bulkhead | Bulkhead |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Threaded | Threaded | Push-Pull | Threaded | Threaded | Threaded | Threaded | Push-Pull |
| Orientation | - | A | - | A | D | D | - | - |
| Primary Material | Metal | Metal | Metal | Metal | Metal | Metal | - | Metal |
| Shell Material | Brass | Brass | Zinc Die Cast | Brass | Brass | Brass | - | Brass |
| Shell Finish | - | Nickel | Nickel | Nickel | Nickel | Nickel | - | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Tin | Tin | Gold | Gold |
| Color | - | Silver | Silver | Silver | Silver | Silver | - | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - | - | - | - | - | - |
| Features | - | Board Guide, Board Lock | Board Lock | Board Guide, Board Lock | Board Guide, Board Lock | Board Guide, Board Lock | Board Guide, Board Lock | Board Guide, Board Lock |
| Shielding | - | Shielded | Shielded | - | Shielded | Shielded | - | - |
| Current Rating (Amps) | 4A | 4A | 4A | 4A | 4A | 4A | 4A | 4A |
| Voltage Rating | 30V | 250VAC/DC | 30VAC/DC | 250V | 125V | 125VAC/DC | 30V | 30VAC/DC |
| Cable Opening | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
