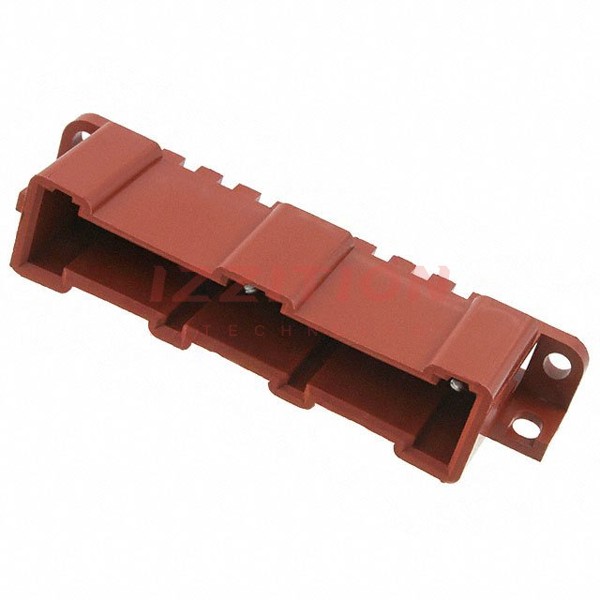

| Part Number | 3-208403-4 | 3-208403-2 | 3-208403-3 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Number of Positions | 10 | 10 | 10 |
| Number of Rows | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - |
| Number of Positions Loaded | All | All | All |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder | Latch Holder |
| Contact Length - Mating | - | - | - |
| Contact Length - Post | 0.120" (3.05mm) | 0.120" (3.05mm) | 0.120" (3.05mm) |
| Overall Contact Length | - | - | - |
| Insulation Height | 0.550" (13.97mm) | 0.550" (13.97mm) | 0.550" (13.97mm) |
| Contact Shape | Circular | Circular | Circular |
| Contact Finish - Mating | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - |
| Contact Finish - Post | Tin | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | Mounting Flange | Mounting Flange | Mounting Flange |
| Operating Temperature | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Red | Red | Red |
| Current Rating (Amps) | 7.5A | 7.5A | 7.5A |
| Voltage Rating | 600V | 600V | 600V |
